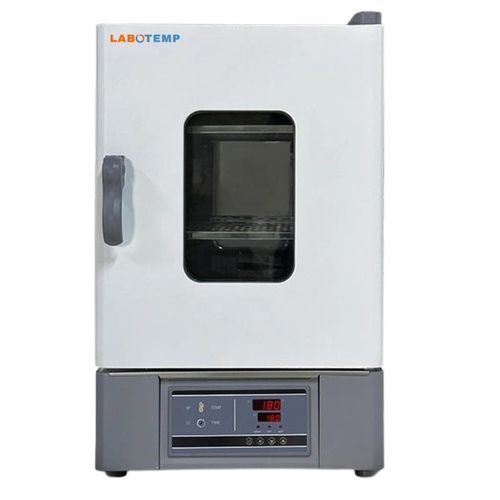

Drying oven FOV-06

for scientific researchfor temperature testingfor general applications

Product Overview
Labotemp Blast Drying Oven FOV-06 is a compact laboratory drying oven designed for controlled heating, sample conditioning and thermal processing in laboratories, research facilities and industrial quality control departments. This forced convection drying oven is suitable for oven drying, glassware drying, material testing and component conditioning. It has a 45 L chamber capacity and a temperature range from RT+10 to 300 °C, offering reliable performance for routine analytical tasks.

Construction & Control
Mirror-finish stainless steel inner chamber and cold-rolled steel exterior with chemical-resistant coating ensure durability and resistance to laboratory chemicals. The oven integrates a dual PID temperature control system with 0.1 °C resolution and ±1.0 °C stability for precise heating. Control options include digital display, LCD or touchscreen interface for monitoring and operation. A hot air circulation system with adjustable fan control distributes heat evenly to improve temperature uniformity.

Key Benefits

• Uniform Heating Performance: Forced air circulation ensures even temperature distribution.
• Programmable Operation: Controller supports timed operation and repeatable workflows (up to 50 programs × 50 steps).
• Robust Industrial Build: Stainless steel chamber supports long-term laboratory use and easy cleaning.

Features

• Mirror-Polish Steel inner chamber.
• Durable stainless steel construction with mirror-polished inner chamber.
• PID auto temperature control for precise and stable operation.
• Wide temperature range up to 300 °C with 0.1 °C resolution.
• Uniform heat distribution for consistent drying performance.
• Energy-efficient 1200 W (1.2 kW) heating system for faster operation.
• Compact design with high working efficiency.
• Over-temperature protection (anti-temperature rise device) for safe use.

Applications

• Used for drying glassware, sterilizing instruments, curing samples, evaporating moisture, thermal testing of materials, and general heating processes in research, quality control, and analytical laboratories.

Technical Specifications

• Maximum Temperature: 300 °C
• Chamber Volume: 45 L
• Power Rating: 1.2 kW
• Temperature Distribution Accuracy: ±2.0%
• Timer Range: 0–9999 minutes
• Program Control: Up to 50 programs × 50 steps
• Interior Material: Mirror stainless steel
• Exterior Material: Cold-rolled plate with chemical-resistant coating
• Insulation Material: Silica fiber
• Heater Type: Stainless steel heating pipe / Nickel-cobalt alloy wire
• Air Circulation: Dual-channel forced convection, rear air duct, swirl air supply
• Air Vent: Ø28 mm × 2 (top)
• Sensor Type: Pt100
• Safety Device: Anti-temperature rise device
• Fan Type: Constant speed fan
• Internal Dimensions: 350 × 350 × 350 mm
• External Dimensions: 468 × 538 × 753 mm
• Package Dimensions: 592 × 618 × 880 mm
• Temperature Resolution: 0.1 °C
• Temperature Fluctuation: ±1.0 °C
• Power Supply: AC220V 50/60 Hz 5.5A
• Partition Load Capacity: 15 kg
• Partition Layers / Standard Layers: 6/2 layers
• Partition Spacing: 35 mm
• Net Weight: 37 kg
• Gross Weight: 43 kg
