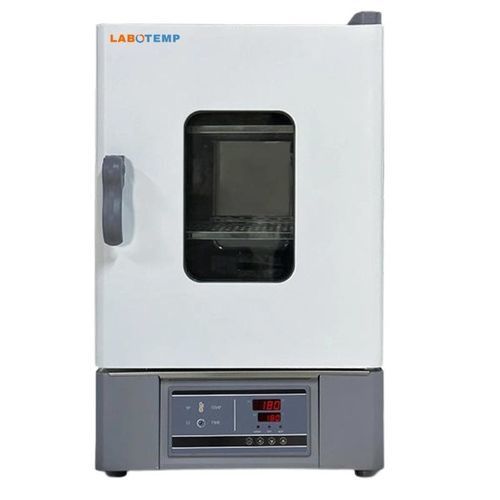

Natural convection oven FOV-16

dryingfor scientific researchfor general applications

Overview
Labotemp natural convection drying oven FOV-16 is a laboratory-grade drying oven designed for controlled heating, drying and thermal processing. With a 125 L chamber and a temperature range from RT+10 to 300 °C, the FOV-16 is suitable for sample conditioning, material testing and routine drying where stable temperature distribution and precise control are required.

Key Features

• 125 L interior chamber for batch drying and testing
• Natural convection design ensuring gentle heat circulation
• PID intelligent controller (digital/LCD/touchscreen options) with 0.1 °C resolution and ±1.0 °C stability
• Pro Overheat Guard — over-temperature protection and alarm
• Mirror stainless steel interior for easy cleaning and corrosion resistance
• Cold-rolled steel exterior with chemical-resistant coating
• Finned stainless steel heating tube for efficient heat transfer
• Alumina silicate fibre insulation to minimise heat loss
• Anti-rise safety device to prevent door or tray displacement

Applications

• Drying, curing, moisture removal and thermal testing of samples and instruments
• Use in chemical, biological and research laboratories, manufacturing quality control and testing facilities

Specifications
Maximum temperature: 300 °C
Chamber volume: 125 L
Power rating: 2.5 kW
Temperature distribution accuracy: ±3.0%
Interior material: Mirror stainless steel
Exterior material: Cold-rolled steel with chemical-resistant coating
Insulation material: Alumina silicate fibre
Heating element: Finned stainless steel heating tube
Air vent (controller): Ø28 mm × 1 (top)
Temperature control method: Dual PID digital tube display
Timer: 0–9999 minutes
Program function: single-stage temperature control, 50 programs × 50 steps
Sensor: Pt100
Safety device: Anti-rise device; Pro Overheat Guard
Internal dimensions: 500×450×550 mm
External dimensions: 617×639×953 mm
Package dimensions: 742×718×1080 mm
Temperature resolution: 0.1 °C
Partition load capacity: 15 kg
Number of layers: 11 / 2
Partition spacing: 40 mm
Power supply (50–60 Hz): AC 220 V / 10.5 A
Temperature fluctuation: ±1.0 °C
Net / Gross weight: 60 / 66 kg

Technical specifications

• Model: FOV-16
• Chamber volume: 125 L
• Temperature range: RT+10 °C to 300 °C
• Max temperature: 300 °C
• Power rating: 2.5 kW
• Temperature control: Dual PID digital tube display; 0.1 °C resolution
• Temperature stability / fluctuation: ±1.0 °C
• Temperature distribution accuracy: ±3.0%
• Interior: Mirror stainless steel
• Exterior: Cold-rolled steel with chemical-resistant coating
• Insulation: Alumina silicate fibre
• Heating element: Finned stainless steel heating tube
• Safety: Over-temperature protection (Pro Overheat Guard), anti-rise device
• Timer: 0–9999 minutes; Program function: 50 programs × 50 steps
• Sensor: Pt100
• Dimensions (internal): 500×450×550 mm
• Dimensions (external): 617×639×953 mm
• Package dimensions: 742×718×1080 mm
• Partition load capacity: 15 kg; partition spacing: 40 mm; number of layers: 11 / 2
• Power supply: AC 220 V / 10.5 A (50–60 Hz)
• Net / Gross weight: 60 / 66 kg
