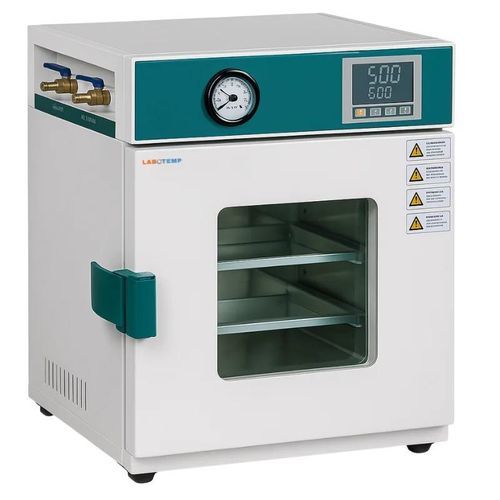

Vacuum oven FOV-24

heatingdryingfor scientific research

Product Overview
Labotemp Vacuum Oven FOV-24 is an ISO- and CE-compliant laboratory vacuum oven designed for controlled drying of heat-sensitive and moisture-sensitive samples. It uses four-wall conduction heating with decompression to minimize oxidation and contamination. The unit features a temperature range RT+10–250°C (±1°C), a 24 L stainless steel chamber, alumina silicate fibre insulation, a 0.8 kW heating system, a two-section PID controller with LED display, programmable 0–9999 minute timer and over-temperature alarm protection.

Key Features

• 24 L vacuum drying chamber with four-wall conduction heating and decompression for gentle processing of sensitive samples
• Temperature range RT+10–250°C with ±1°C stability for precise thermal control
• Two-section PID controller with LED display for accurate, stable temperature regulation
• Stainless steel inner chamber and alumina silicate fibre insulation for corrosion resistance and heat retention
• 0.8 kW heater delivering uniform heating under reduced pressure to limit oxidation and contamination
• Programmable timer (0–9999 min) and over-temperature sound-light alarm for safe unattended operation

Applications

• Drying heat-sensitive, easily oxidized or moisture-sensitive materials under vacuum
• Suitable for pharmaceutical samples, electronic components, chemical materials and materials research in labs and test centres
• Appropriate for powders, granules and delicate components requiring contamination-minimized drying

Optional Accessories

• Silicone connection tube
• Vacuum pump filter
• Vacuum pump
• Shelves

Technical Specifications

• Temperature Range: RT+10–250°C
• Capacity: 24 L
• Power Supply: AC220V 50/60Hz 3.6A
• Vacuum Degree Range: <133 Pa
• Temperature Resolution: 0.1°C
• Temperature Fluctuation (Accuracy): ±1°C
• Heating-Up Time: 80 min
• Power Rating: 0.8 kW
• Nozzle Diameter: 10 mm
• Heating Mode: Four-wall heat conduction and decompression
• Number of Shelves: 4
• Insulation Layer: Alumina silicate fibre
• Heater: Stainless steel electric heating tube
• Observation Window: Bullet‑proof tempered glass
• Vacuum Display: LCD display, accuracy class 0.5
• Timer: 0–9999 minutes (with timing wait function)
• Operation Function: Fixed temperature operation, timing function, auto stop
• Temperature Sensor: PT100
• Safety Device: Over-temperature sound-light alarm
• Inner Chamber (W×D×H): 300 × 300 × 270 mm
• Exterior Size (W×D×H): 480 × 480 × 606 mm
• Inner Chamber Material: High quality stainless steel sheet
• Outer Shell: Cold-rolled steel with electrostatic paint finish
• Load per Rack: 15 kg
• Shelf Space: 40 mm
• Packing Size (W×D×H): 590 × 550 × 750 mm
• Net Weight: 42 kg
• Gross Weight: 52 kg
