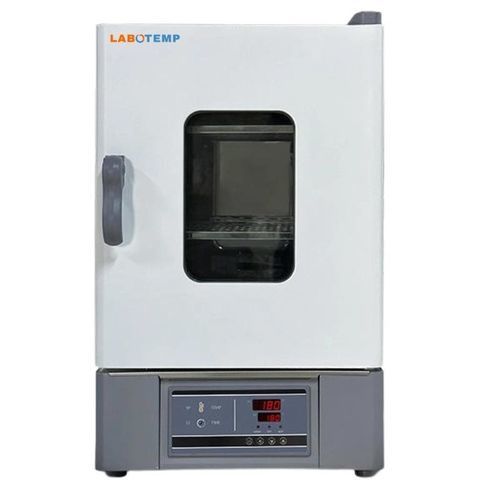

Natural convection oven FOV-14

curingheatingsterilization

Product Overview
Labotemp natural convection drying oven FOV-14 is a precision laboratory oven designed for controlled heating, drying and thermal processing in research laboratories, industrial test labs and quality control environments. The unit is suitable for glassware drying, sample preparation, sterilization and material conditioning where uniform, gentle heating is required. Chamber capacity: 65 L; temperature range: RT+10 to 300 °C.

Construction & Design
Mirror-finish stainless steel inner chamber for easy cleaning and corrosion resistance. Cold-rolled steel exterior with a chemical-resistant coating to withstand typical lab environments. Natural convection airflow provides even heat circulation without forced fans, preserving delicate samples.

Key Functions

• Fixed-value control, timed operation, automatic stop and scheduled start for repeatable cycles
• Over-temperature protection and temperature-limit alarms to ensure operator and sample safety
• PID controller (dual-PID digital display) for precise temperature regulation

Features

• Dual-PID stability: digital dual-PID control system for accurate temperature stability
• Wide temperature range: RT+10 °C to 300 °C
• Mirror stainless steel interior for corrosion resistance and easy maintenance
• Cold-rolled steel exterior with chemical-resistant coating
• Finned stainless steel heating tube for fast and uniform heat distribution
• Valley natural convection design for gentle, even air circulation
• High-quality alumina silicate insulation to minimize heat loss and improve efficiency

Applications

• Drying, heating, sterilizing and curing of samples in laboratories and research facilities
• Thermal processing, temperature stability testing and controlled moisture removal in experimental setups and QC procedures

Technical specifications

• Model: FOV-14
• Maximum Temperature: 300 °C
• Chamber Volume: 65 L
• Power Rating: 1.5 kW
• Temperature Distribution Accuracy: ±3.0%
• Interior Material: Mirror stainless steel
• Exterior Material: Cold-rolled steel with chemical-resistant coating
• Insulation Material: Alumina silicate fiber
• Heating Element: Finned stainless steel heating tube
• Temperature Control Method: Dual PID digital tube display
• Timer: 0–9999 minutes
• Program Function: single-stage temperature control, 50 programs × 50 steps
• Sensor: Pt100
• Safety Device: Anti-rise device; over-temperature protection and temperature-limit alarms
• Air Vent (Controller): Ø28 mm × 1 (top)
• Internal Dimensions (mm): 400 × 360 × 450
• External Dimensions (mm): 518 × 550 × 860
• Package Dimensions (mm): 642 × 628 × 980
• Temperature Resolution: 0.1 °C
• Partition Load Capacity: 15 kg
• Number of Layers: 8 / 2
• Partition Spacing: 40 mm
• Power Supply: AC 220 V / 7.2 A (50–60 Hz)
• Temperature Fluctuation: ±1.0 °C
• Net / Gross Weight: 43 / 49 kg
