Drying oven FOV-05

for scientific researchlaboratoryeducation

Product overview

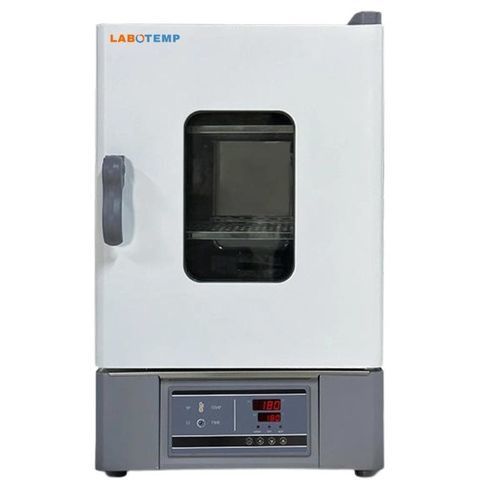

Labotemp Drying Oven FOV-05 is a laboratory forced‑convection oven with a 30 L chamber, designed for controlled hot‑air drying, baking, wax melting and small-scale heat treatment. The dual‑channel airflow and variable‑speed fan promote uniform temperature distribution across the chamber. Operating range: RT+10°C to 300°C with 0.1°C resolution.

Control and construction
The unit features a 5‑inch color touchscreen controller with fuzzy PID control and a Pt100 sensor. Interior is mirror stainless steel; exterior is cold‑rolled steel with a chemical‑resistant coating. Insulation is silica/aluminum‑silicate fiber and heating uses a stainless‑steel heating pipe. The programmable controller stores up to 50 programs with 50 steps each and supports timed operation, scheduled start, automatic stop, temperature deviation correction, menu lock and over‑temperature protection.

Key benefits

• Compact 30 L chamber for routine laboratory drying and heating tasks.
• Precise temperature control: fuzzy PID, Pt100 sensor and 0.1°C resolution for repeatable results.
• Programmable workflows: up to 50 programs × 50 steps to automate complex procedures.

Features

• 50 programmable programs (50 × 50 steps).
• Chamber capacity: 30 L for drying, baking, wax melting and heat treatment.
• Temperature range RT+10°C to 300°C; resolution 0.1°C; fluctuation ±1.0°C; distribution accuracy ±2.0%.
• 5‑inch color touchscreen with fuzzy PID control; Pt100 sensor.
• Dual‑channel forced convection and variable‑speed fan for uniform circulation.
• Mirror stainless‑steel interior for easy cleaning and chemical resistance.
• Silica/aluminum‑silicate fiber insulation to minimize heat loss.
• Stainless‑steel heating pipe and RS485 data interface available.
• Timer 0–9999 min; scheduled start, automatic stop, power‑failure memory and menu lock.
• Anti‑temperature‑rise device and over‑temperature protection for safety.

Applications

• Laboratory drying of glassware, samples and components under controlled hot‑air conditions.
• Sample preparation requiring precise heating and drying steps.
• Baking and controlled heating of small batches and laboratory samples.
• Wax melting and processing of similar materials.
• Laboratory heat treatment and material testing up to 300°C.
• Research & development and educational laboratory demonstrations.

Specifications
Chamber Capacity: 30 L
Temperature Range: RT+10°C to 300°C
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Controller: 5‑inch color touchscreen
Temperature Control: Fuzzy PID
Sensor: Pt100
Timer Range: 0–9999 minutes
Program Capacity: 50 programs × 50 steps
Program Step Time: 0–6000 minutes per step
Operating Functions: fixed‑value operation, timed operation, automatic stop, scheduled start

Air Circulation: Dual‑channel forced convection
Fan: Variable‑speed fan
Interior Material: Mirror stainless steel
Exterior Material: Cold‑rolled steel with chemical‑resistant coating
Insulation Material: Silica/aluminum‑silicate fiber
Heating Element: Stainless‑steel heating pipe
Air Vent: Ø28 mm × 1, top
Partition Load Capacity: 15 kg
Number of Layers / Standard Layers: 5 / 2
Partition Spacing: 40 mm

Internal Dimensions (W×D×H): 310 × 310 × 310 mm
External Dimensions (W×D×H): 428 × 505 × 710 mm
Package Dimensions (W×D×H): 552 × 578 × 840 mm
Net Weight: 32 kg
Gross Weight: 37 kg

Rated Power: 0.8 kW
Power Supply: AC 220 V / 120 V
Rated Current: 3.6 A
Frequency: 50/60 Hz

Safety: Anti‑temperature‑rise device, over‑temperature protection
Additional Functions: temperature deviation correction, menu locking, power‑failure memory
Data Interface: RS485 available
