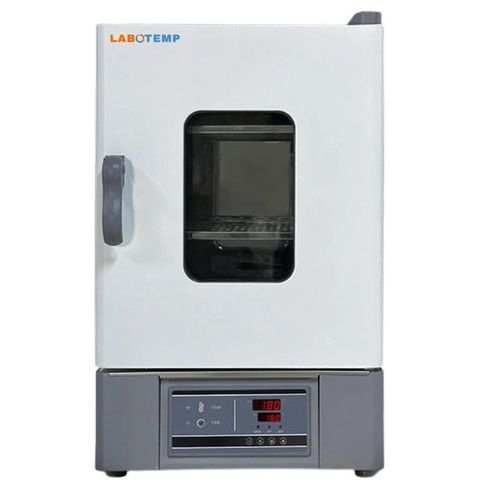

Curing oven FOV-08

for accelerated aging testssterilizationdrying

Product description
Labotemp Blast Drying Oven FOV-08 is a laboratory-grade forced-convection drying oven designed for controlled heating, drying and thermal conditioning in research laboratories, industrial production and quality control environments. It is suitable for oven drying, glassware drying, sample conditioning and material testing. The unit features an 85 L chamber, temperature range RT+10 to 300 °C, 0.1 °C resolution, dual-channel forced convection and a 5-inch color touchscreen PID controller. Interior is mirror-finish stainless steel; exterior is cold-rolled steel with chemical-resistant coating.

Why choose Labotemp Blast Drying Oven FOV-08?

• Uniform heat distribution: Dual-channel forced convection ensures stable airflow and minimized temperature gradients across shelves.
• Programmable control: 5-inch PID touchscreen with scheduling and multi-stage programs (50 Programs × 50 Steps) for repeatable thermal profiles.
• Laboratory-grade construction: Corrosion-resistant stainless steel interior and insulated cabinet for continuous operation and long service life.

Features

• Suitable for stability and accelerated aging tests.
• Intuitive 5-inch color touchscreen PID for precise setup, monitoring and program management.
• Multi-stage programmable heating (50 Programs × 50 Steps) for complex test cycles.
• Dual-channel vertical air duct architecture for uniform airflow and reduced temperature variation.
• Industrial-grade stainless steel chamber and chemical-resistant exterior coating.
• Fast heat-up and stable long-duration holding capability.
• Safety functions: over-temperature protection, anti-temperature rise device and power failure memory.
• Additional functions: bias correction, menu lock; speed-control fan for airflow adjustment.

Applications

• Drying, baking, sterilizing and conditioning of materials in laboratories, research institutes and quality control departments.
• Accelerated aging and paint shelf-life testing where consistent temperature exposure is critical.
• Testing of coatings, polymers, powders, glassware and various chemical and material samples requiring controlled heating environments.

Technical specifications

• Chamber volume: 85 Liters
• Temperature range: RT +10 °C to 300 °C
• Temperature resolution: 0.1 °C
• Temperature fluctuation: ±1.0 °C
• Temperature distribution accuracy: ±2.0 %
• Controller type: 5-inch color touchscreen PID
• Program capacity: 50 Programs × 50 Steps
• Timer range: 0 – 9999 minutes
• Sensor type: Pt100
• Air circulation: Dual-channel forced convection (vertical air duct)
• Air vent: Ø28 mm × 2 (top)
• Interior material: Mirror-finish stainless steel
• Exterior material: Cold-rolled plate with chemical-resistant coating
• Insulation material: Silica fiber
• Heating element: Stainless steel heating pipe
• Power rating: 1.8 kW
• Power supply: AC 220V / 50–60 Hz / 8.2 A
• Internal dimensions (W×D×H): 420 × 450 × 450 mm
• External dimensions (W×D×H): 567 × 640 × 853 mm
• Package dimensions (W×D×H): 692 × 718 × 980 mm
• Partition load capacity: 15 kg
• Standard shelves: 2 (8 possible positions)
• Partition spacing: 150 mm
• Net / Gross weight: 50 / 58 kg
• Safety features: Over-temperature protection, Anti-temperature rise device, Power failure memory
• Additional functions: Bias correction, Menu lock
• Fan type: Speed control fan
