Drying oven FOV-07

for scientific researchlaboratoryfor general purposes

Product overview

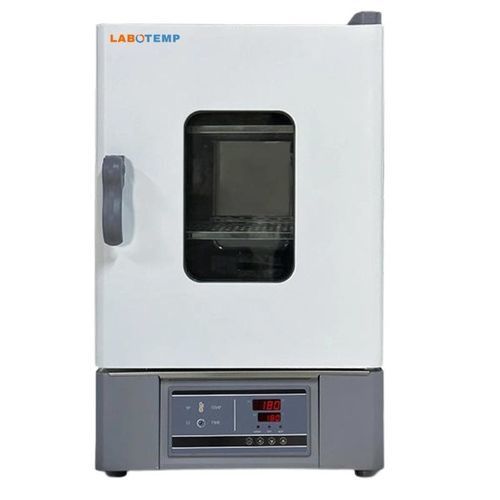

Labotemp Blast Drying Oven FOV-07 is a 65 L laboratory convection drying oven designed for controlled heating, sample conditioning and reproducible thermal processing in research labs, quality control and light production units. The unit operates from RT+10 to 300 °C with PID regulation and Pt100 sensing for precise temperature management.

Design & construction
Mirror-finish stainless steel interior and chemically resistant cold-rolled steel exterior provide easy cleaning and long service life. Dual-channel forced convection with a rear air duct and swirl air supply improves temperature uniformity across the chamber. User interfaces include digital display, LCD or touchscreen control for flexible operation and clear monitoring.

Key features

• Dual-channel forced convection for uniform temperature distribution.
• Programmable dual PID controller: up to 50 programs × 50 steps for repeatable workflows.
• Dual PID control with 0.1 °C resolution and ±1.0 °C temperature stability.
• Mirror stainless-steel interior and chemical-resistant exterior for laboratory conditions.
• High heating capacity (feature listing indicates 3 kW) and compact footprint suitable for benchtop use.
• Timer range 0–9999 minutes and Pt100 sensor for accurate feedback.

Applications

• Drying, heating, sterilizing and baking samples in laboratories, research institutes, universities and quality control departments.

Technical specifications

• Maximum temperature: 300 °C
• Chamber volume: 65 L
• Power rating: 1.6 kW
• Heating capacity (feature listing): 3 kW
• Temperature distribution accuracy: ±2.0%
• Timer range: 0–9999 minutes
• Program control: Up to 50 programs × 50 steps
• Interior material: Mirror stainless steel
• Exterior material: Cold-rolled plate with chemical-resistant coating
• Insulation material: Silica fiber
• Heater type: Stainless steel heating pipe / Nickel-cobalt alloy wire
• Air circulation: Dual-channel forced convection, rear air duct, swirl air supply
• Air vent: Ø28 mm × 2 (top)
• Sensor type: Pt100
• Safety device: Anti-temperature rise device
• Fan type: Constant speed fan
• Internal dimensions: 400 × 360 × 450 mm
• External dimensions: 518 × 550 × 860 mm
• Package dimensions: 642 × 628 × 980 mm
• Temperature resolution: 0.1 °C
• Temperature fluctuation: ±1.0 °C
• Power supply: AC220V 50/60 Hz / 7.2A
• Partition load capacity: 15 kg
• Partition layers / standard layers: 8 / 2 layers
• Partition spacing: 150 mm
• Net weight: 43 kg
• Gross weight: 49 kg
