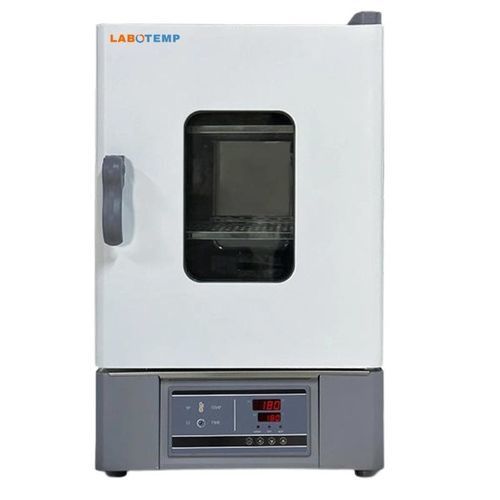

Resin curing oven FOV-11

curingheatingdrying

Product overview
Labotemp Blast Drying Oven FOV-11 is an ISO and CE compliant industrial drying oven designed for controlled heating, drying and thermal processing in laboratories, research facilities and manufacturing quality-control environments. The unit offers a 625 L chamber, a temperature range from RT+10 to 300 °C and a dual-channel swirl air supply with forced convection to ensure uniform temperature distribution. The inner chamber is mirror stainless steel; the exterior is cold-rolled steel with a chemical-resistant coating. Advanced PID control with digital display, LCD or touchscreen options provides 0.1 °C resolution and ±1 °C stability, suitable for repeatable process control.

Key benefits

• 625 L chamber capacity for high-volume sample and batch processing.
• Dual-channel forced convection and swirl air supply for improved temperature uniformity across the chamber.
• Precise PID temperature control with programmable cycles and 0.1 °C resolution.
• Durable mirror stainless steel interior and chemical-resistant exterior for easy cleaning and long service life.

Features

• Dual PID control system for precise temperature regulation.
• Operating range: RT+10 °C to 300 °C.
• Mirror stainless steel interior for corrosion resistance and easy cleaning.
• Cold-rolled exterior with chemical-resistant coating for harsh environments.
• Silica fiber insulation to reduce heat loss and improve energy efficiency.
• Heater: stainless steel heating pipe / nickel-cobalt alloy wire for even heating.
• Dual-channel swirl air supply with rear air duct and forced convection for uniform airflow.
• Digital display (LCD or touchscreen) for temperature and time monitoring.
• Programmable operation: timed, scheduled and automatic modes; up to 50 programs × 50 steps.
• Anti-temperature-rise safety device (D-type optional) for over-temperature protection.
• Constant-speed fan for stable airflow characteristics.
• Seven adjustable partition layers with 150 mm spacing for flexible sample placement.

Applications

• Oven drying and moisture removal of samples and components.
• Baking, curing and thermal conditioning in R&D and production labs.
• Wax melting and glassware drying.
• Temperature stability testing and thermal processing in quality control environments.

Technical specifications

• Maximum temperature: 300 °C
• Chamber volume: 625 L
• Power rating: 5.0 kW
• Temperature distribution accuracy: ±2.0%
• Timer range: 0–9999 minutes
• Program control: up to 50 programs × 50 steps
• Interior material: mirror stainless steel
• Exterior material: cold-rolled plate with chemical-resistant coating
• Insulation material: silica fiber
• Heater type: stainless steel heating pipe / nickel-cobalt alloy wire
• Air circulation: dual-channel forced convection, rear air duct, swirl air supply
• Air vent: Ø28 mm × 2 (top)
• Sensor type: Pt100
• Safety device: anti-temperature rise device (D-type optional)
• Fan type: constant speed fan
• Internal dimensions (mm): 660 × 760 × 1250
• External dimensions (mm): 900 × 960 × 1840
• Package dimensions (mm): 1051 × 1060 × 1949
• Temperature resolution: 0.1 °C
• Temperature fluctuation: ±1.0 °C
• Power supply (50/60 Hz): AC380V / 7.6A
• Partition load capacity: 15 kg
• Partition layers / standard layers: 7 / 2 layers
• Partition spacing: 150 mm
• Net / gross weight (kg): 113 / 137
