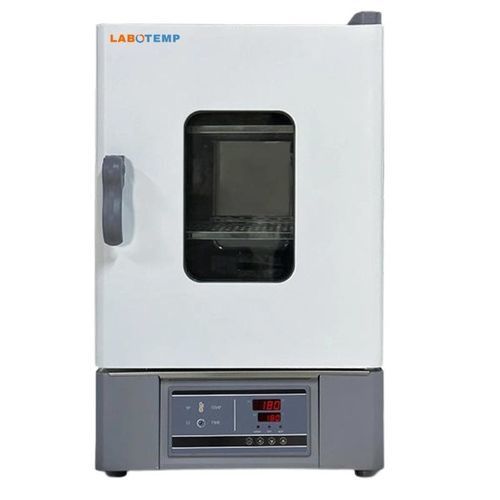

Drying oven FOV-09

curingheatingfor scientific research

Overview
Labotemp Blast Drying Oven FOV-09 is an ISO and CE compliant laboratory drying oven engineered for controlled heating, drying and thermal processing in research labs, industrial test areas and quality control environments. It supports oven drying, glassware drying, sample conditioning and material testing. The 125 L chamber operates from RT+10 to 300 °C and combines a mirror stainless steel interior with a chemical‑resistant cold‑rolled steel exterior.

Key Benefits

• 125 L chamber capacity for batch drying and sample throughput.
• Dual-channel forced convection for improved temperature uniformity across the chamber.
• PID temperature control with 0.1 °C resolution and ±1 °C stability for repeatable thermal processes.

Features

• Digital LCD or touchscreen PID controller options for programmable profiles and timed runs.
• Mirror stainless steel interior and chemical-resistant cold-rolled steel exterior.
• Temperature range RT+10 to 300 °C with 0.1 °C resolution and ±1.0 °C fluctuation.
• Stainless steel heating pipe / nickel-cobalt alloy resistance wire for efficient, uniform heating.
• Internal dimensions 500×450×550 mm (125 L) with adjustable shelf spacing.
• Rated power 2.3 kW for rapid heat-up.

Applications

• Drying, curing, heating and temperature testing of laboratory samples for research, analysis and material preparation.

Specifications (table)
Model: FOV-09
Maximum Temperature: 300 °C
Chamber Volume: 125 L
Internal Dimensions (mm): 500×450×550
External Dimensions (mm): 617×639×953
Power Rating: 2.3 kW
Temperature Range: RT+10 to 300 °C
Temperature Resolution: 0.1 °C
Temperature Fluctuation: ±1.0 °C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Program Control: Up to 50 programs × 50 steps
Interior Material: Mirror stainless steel
Exterior Material: Cold-rolled plate with chemical-resistant coating
Insulation: Silica fiber
Heater Type: Stainless steel heating pipe / Nickel-cobalt alloy wire
Air Circulation: Dual-channel forced convection, rear air duct, swirl air supply
Air Vents: Ø28 mm × 2 (top)
Sensor Type: Pt100
Safety Device: Anti-temperature rise device
Fan Type: Constant speed fan
Partition Load Capacity: 15 kg
Partition Layers / Standard Layers: 11/2 layers
Partition Spacing: 150 mm
Net / Gross Weight (kg): 60 / 66
Power Supply (50/60 Hz): AC220V / 10.5A

Technical specifications

• Model: FOV-09
• Maximum Temperature: 300 °C
• Chamber Volume: 125 L
• Internal Size: 500×450×550 mm
• External Size: 617×639×953 mm
• Power Rating: 2.3 kW
• Temperature Range: RT+10 to 300 °C
• Temperature Resolution: 0.1 °C
• Temperature Fluctuation: ±1.0 °C
• Temperature Distribution Accuracy: ±2.0%
• Timer Range: 0–9999 minutes
• Program Control: Up to 50 programs × 50 steps
• Interior Material: Mirror stainless steel
• Exterior Material: Cold-rolled plate with chemical-resistant coating
• Insulation: Silica fiber
• Heater: Stainless steel heating pipe / Nickel-cobalt alloy wire
• Air Circulation: Dual-channel forced convection, rear air duct, swirl air supply
• Air Vents: Ø28 mm × 2 (top)
• Sensor: Pt100
• Safety: Anti-temperature rise device
• Fan: Constant speed fan
• Partition load: 15 kg
• Partition layers / standard layers: 11/2 layers
• Partition spacing: 150 mm
• Net / Gross Weight: 60 / 66 kg
• Power Supply: AC220V / 10.5A
