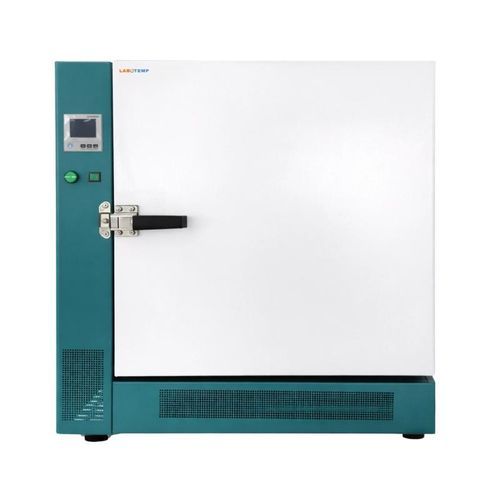

Hot air oven FOV-18

thermalcuringaging

Product Overview
Labotemp Hot Air Oven FOV-18 is a 150 L forced-convection hot air oven engineered for repeatable drying, curing, thermal aging and component conditioning. It operates from RT+20°C to 500°C with ±0.5°C precision; the PID intelligent controller and dual-LCD make setpoint adjustment and monitoring fast and intuitive. The inner chamber is SUS316L stainless steel with alumina silicate fibre insulation providing corrosion resistance and heat retention. A 4.8 kW heater and controlled airflow ensure fast heat-up and consistent temperature distribution across batches. Safety features include a programmable 0–9999 min timer and an over-temperature alarm.

Why Choose This Product

• Trusted manufacturer with consistent industrial design and manufacturing quality.
• Large-volume performance: 150 L capacity with powerful 4.8 kW heating and forced convection for fast, uniform processing.
• Safety & precise control: PID dual-LCD control, long timer range and over-temperature protection for repeatable results.

Features

• Uniform airflow for consistent temperature distribution
• High-temperature operation from RT+20°C to 500°C with ±0.5°C precision
• PID intelligent controller with Dual-LCD display for stable, responsive temperature control and easy monitoring
• Durable SUS316L stainless steel inner chamber
• Alumina silicate fibre insulation for superior heat resistance and retention
• 4.8 kW forced-convection heating system for fast heating
• Programmable timer (0–9999 min) and over-temperature alarm

Applications

• High-temperature drying, stress-relieving, curing and heat-treatment processes
• Electronics, aerospace, chemical and materials testing laboratories requiring precise, uniform high-temperature control
• Component testing, thermal aging and high-temperature sample conditioning; small production runs and batch processing

Caractéristiques / spécifications techniques

• Model NO.: FOV-18
• Heating Method: Forced Convection
• Temp Range: RT+20–500°C
• Accuracy: ±0.5°C
• Uniformity: 2.50%
• Inner Chamber: SUS316L
• Insulation: Alumina silicate fibre
• Heater Power: 4.8 kW
• Controller: PID Intelligent
• Display: Dual LCD
• Timing: 0–9999 min
• Safety: Over-temp alarm
• Chamber Size: 500×500×600mm
• Volume: 150L
• Power Supply: AC 380V 50Hz / 240V 60Hz
• Current: 7.3A
• Net Weight: 80kg
• Gross Weight: 95kg
• Package Size: 1100x860x1250mm
