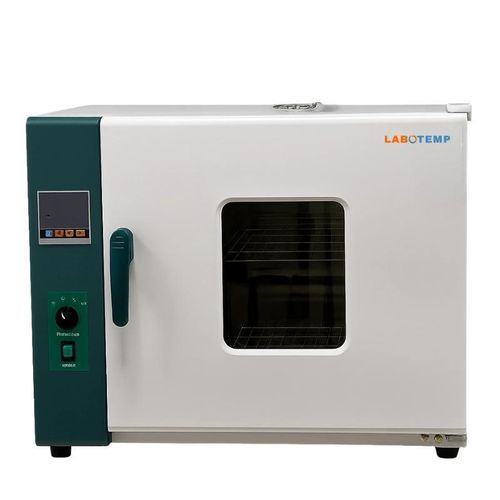

Drying oven FOV-03

for scientific researchfor the pharmaceutical industrylaboratory

Overview
Labotemp Blast Drying Oven FOV-03 is a 125 L laboratory forced‑air drying oven engineered for precise heating, drying and thermal conditioning in research labs, production lines and quality control departments. The unit delivers uniform hot‑air circulation with adjustable forced flow and PID temperature control from RT+10 °C up to 300 °C, enabling repeatable sample processing and component conditioning.

Construction and Control
The cabinet features a cold‑rolled steel exterior with a spray‑coated finish and a stainless steel inner liner for corrosion resistance and easy cleaning. Temperature is managed by an intelligent PID digital controller with 0.1 °C resolution and ±1 °C stability. An integrated forced hot‑air circulation system with adjustable fan speed improves temperature uniformity and drying efficiency.

Key features

• 125 L chamber capacity suitable for batch drying and sample preparation
• Cold‑rolled steel body with spray coating and stainless steel inner chamber
• PID digital controller with 0.1 °C resolution, LED display, timer and alarm
• Double‑layer observation window for process monitoring
• Uniform hot air circulation via low‑noise fan; adjustable fan speed
• High‑quality silicone door seal for heat retention
• Power: 2000 W; compatible with 220 V 50/60 Hz supply

Applications

• Drying, baking and thermal treatment in laboratories and research institutes
• Material testing and sample preparation in pharmaceutical, chemical and electronics industries
• Glassware drying, component conditioning and controlled moisture removal

Specifications

• Model: FOV-03
• Temperature range: RT+10 °C to 300 °C
• Capacity: 125 L
• Power: 2000 W
• Temperature resolution: 0.1 °C
• Temperature fluctuation (stability): ±1 °C
• Power supply: 220 V 50/60 Hz
• Overall dimensions: 620 × 860 × 730 mm
• Package size: 675 × 900 × 800 mm
• Net weight / Gross weight: 57 kg / 64 kg
• Internal chamber: 450 × 550 × 550 mm
