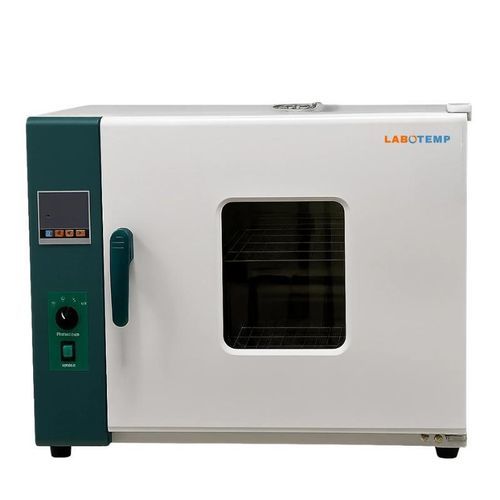

Heat treatment oven FOV-04

heatingsterilizationdrying

Overview
Labotemp Blast Drying Oven FOV-04 is a large-capacity forced‑air drying oven designed for controlled heating, drying and thermal conditioning in research laboratories, industrial production lines and quality assurance facilities. It supports oven drying, component conditioning, glassware drying, material testing and moisture removal. The unit features a 210 L stainless steel chamber and a temperature control range from RT+10°C to 300°C, suitable for continuous laboratory and industrial operation.

Key Advantages

• High capacity chamber: 210 L interior enables efficient batch processing for lab and industrial uses.
• Stable temperature control: PID controller with 0.1°C resolution and ±1°C fluctuation for repeatable results.
• Compliant construction: manufactured to ISO and CE standards for reliable industrial deployment.

Features

• Corrosion‑resistant construction
• Cold‑rolled steel exterior with electrostatic spray finish
• Stainless steel inner chamber (AB type) for extended service life
• PID digital temperature controller with LED display
• Over‑temperature protection for safe operation
• Double‑layer tempered glass observation window
• Low‑noise, long‑life fan providing uniform forced hot‑air circulation
• Silicone sealing strip for effective thermal insulation
• Adjustable fan speed to optimize airflow

Applications

• Material testing and conditioning
• Sample and component drying
• Glassware and instrument drying
• Drying, baking and thermal conditioning processes
• Dry heat sterilization and heat treatment where dry heat is required

Specification Summary
Temperature control range: RT+10°C to 300°C
Capacity: 210 L
Power: 3000 W
Temperature resolution: 0.1°C
Temperature fluctuation: ±1°C
Power supply: 220 V 50 Hz
Overall dimensions: 670 × 910 × 880 mm
Package size: 720 × 970 × 950 mm
Net weight / Gross weight: 71 kg / 80 kg
Studio size: 500 × 600 × 700 mm

Technical specifications

• Model: FOV-04
• Chamber volume: 210 L
• Temperature range: RT+10°C to 300°C
• Controller: PID digital controller, 0.1°C resolution
• Temperature stability / fluctuation: ±1°C
• Heating power: 3000 W
• Power supply: 220 V 50 Hz
• Construction: Cold‑rolled steel exterior with electrostatic spray coating; stainless steel inner chamber (AB type)
• Circulation: Forced hot‑air with adjustable fan speed; low‑noise long‑life fan
• Safety: Over‑temperature protection; silicone sealing strip
• Observation: Double‑layer tempered glass window
• Dimensions (overall): 670 × 910 × 880 mm
• Package size: 720 × 970 × 950 mm
• Net / Gross weight: 71 kg / 80 kg
