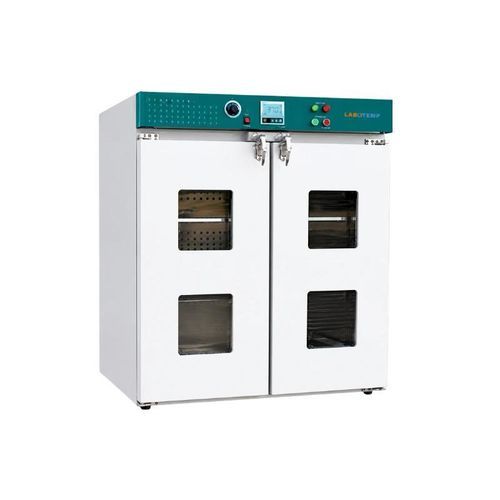

Forced convection incubator drying oven FOV-30

forced airdryfor temperature testing

Product overview
Labotemp Forced Air Drying Oven FOV-30 is a large-capacity industrial oven engineered for controlled drying, heating, aging, conditioning and thermal processing in laboratories, manufacturing and quality-control environments. The low-noise centrifugal fan provides forced-air circulation for uniform temperature distribution. Operating range RT +10°C to 300°C with 0.1°C resolution, ±1°C fluctuation and ±3% uniformity, suitable for stable thermal conditions and high-volume processing.

Key features

• Large internal volume for high-volume thermal processing (internal volume listed: 1870 L; marketing reference: 1800 L).
• Forced-air circulation with low-noise centrifugal fan for consistent heating.
• PID intelligent temperature control with PT100 sensor; optional multi-segment programmable controller.
• Touch-button temperature setting and LCD digital display.
• Timer operation 0–9999 minutes with timing-wait function and automatic stop.
• Temperature deviation correction, menu lock and power-off memory for process reliability.
• High-quality rock wool board insulation, stainless-steel inner chamber and stainless-steel heating tubes.
• Over-temperature protection with one-key start overheat power-off safety.
• Double doors and up to 11 shelves (30 kg load per shelf) for large-batch processing.
• Exhaust outlet selectable on top or side according to installation requirements.

Applications

• Laboratory drying – Drying glassware, samples, chemicals and materials under controlled temperature.
• Heat treatment – Thermal conditioning, aging, curing and heat treatment of materials and components.
• Industrial processing – High-volume drying, heating and thermal processing in manufacturing environments.
• Quality control – Repeatable heating and drying processes for testing, inspection and QC workflows.
• Research & development – Material testing and product development requiring stable, uniform temperature conditions.

Standard accessories

• Shelf — 2 pcs

Optional accessories

• Spare shelf
• Program controller
• RS485 interface
• Printer

Technical specifications

• Cycle Mode: Fan – Forced Circulation
• Inner Chamber Material: Stainless Steel
• Outer Shell: Galvanized sheet with electrostatic spraying exterior
• Insulation Layer: High quality rock wool board (with CE)
• Heater: Stainless steel heating tube
• Exhaust Hole: On top or side (selectable)
• Temperature Control Mode: PID intelligent control (or multi-segment programmable control optional)
• Temperature Setting Mode: Touch button setting
• Temperature Display Mode: LCD digital display
• Operation Function: Fixed temperature operation, timing function, auto stop
• Additional Function: Temperature deviation correction, menu locked, power-off memory
• Sensor: PT100
• Safety Device: One key to start overheat power off
• Power Supply: 380 V, 50/60 Hz
• Power Rating: 12 kW
• Volume (internal): 1870 L (marketing text also references 1800 L capacity)
• Maximum Shelf Number: 11
• Load per Rack: 30 kg
• Shelf Space: 100 mm
• Temperature Range: RT +10 – 300°C
• Temperature Resolution: 0.1°C
• Temperature Motion (fluctuation): ±1°C
• Temperature Uniformity: ±3%
• Timer: 0–9999 min (with timing wait function)
• Inner Chamber Size (W × L × H): 1200 × 1200 × 1300 mm
• Exterior Size (W × L × H): 1330 × 1400 × 1670 mm
• Packing Size (W × L × H): 1550 × 1500 × 1890 mm
• Net Weight: 410 Kg
• Gross Weight: 480 Kg
