Vacuum oven FOV-25

dryingfor scientific researchfor the pharmaceutical industry

Product overview

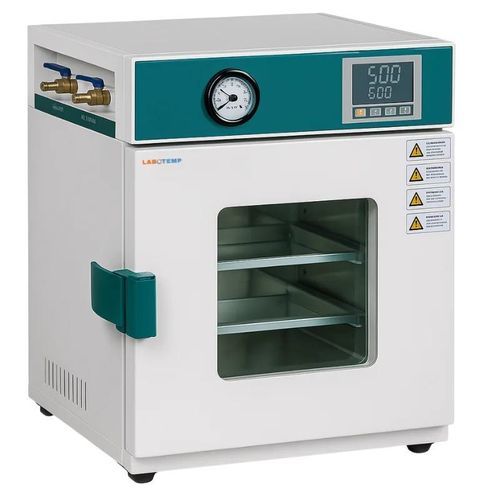

Labotemp Vacuum Drying Oven FOV-25 is a laboratory vacuum drying oven designed for gentle, controlled drying of heat‑sensitive, moisture‑sensitive and oxidation‑prone materials. The unit operates from RT+10°C to 250°C with ±1°C accuracy. A 91 L stainless steel chamber delivers efficient, contamination‑reduced drying for powders, electronic components, pharmaceutical samples, chemicals and specialty materials.

Construction & thermal control
Durable stainless‑steel inner chamber with alumina‑silicate fibre insulation for improved heat retention and stable internal temperatures. The 2.0 kW heating system provides even heat distribution. Temperature is controlled by a two‑section PID controller with LED display. The oven includes a programmable 0–9999 minute timer and an over‑temperature alarm for safe unattended operation.

Features

• 91 L vacuum drying capacity
• Temperature range RT+10°C to 250°C, accuracy ±1°C
• Two‑section PID controller with LED display for precise control
• 2.0 kW heating system for uniform, oxidation‑free drying
• Stainless‑steel inner chamber with alumina‑silicate fibre insulation
• Programmable timer (0–9999 min) and over‑temperature alarm

Applications

• Drying of heat‑sensitive, moisture‑sensitive or oxidation‑prone materials under vacuum
• Pharmaceutical, chemical, electronic and materials research laboratories requiring contamination‑free drying
• Processing of powders, granules, delicate components and specialty materials

Optional accessories

• Silicone connecting tube
• Vacuum pump filter
• Vacuum pump
• Shelf

Technical specifications

• Model: FOV-25
• Heating method: Four‑wall conduction & decompression
• Temperature range: RT+10–250°C
• Accuracy: ±1°C
• Inner chamber: Stainless steel
• Insulation: Alumina‑silicate fibre
• Power rating: 2.0 kW
• Temperature control: Two‑section PID
• Display: LED
• Timer: 0–9999 min (programmable)
• Safety: Over‑temperature alarm
• Inner dimensions (mm): 450×450×450
• Outer dimensions (mm): 640×590×780
• Packing dimensions (mm): 739×700×889
• Volume (L): 91
• Power supply: 220V (AC) / 110V
• Current: 9.1A
• Shelves: 2 supplied, max 7
• Shelf frame positions: 14
• Load per rack: 15 kg
• Shelf spacing: 50 mm
• Net weight: 82 kg
• Gross weight: 105 kg
