Annealing oven FOV-17

heat treatmentcuringdrying

Overview

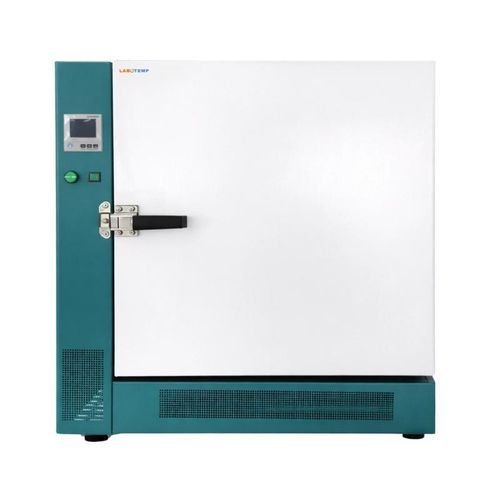

Labotemp Hot Air Oven FOV-17 is a compact high-temperature laboratory and small-industrial oven for precise heating, drying and thermal processing. It uses forced convection to ensure uniform temperature distribution in the chamber. Temperature control ranges from RT+20°C to 500°C with ±0.5°C accuracy. The unit includes a PID intelligent controller with dual LCD display, a 3.6 kW heater, a 50 L SUS316L chamber, programmable timer and over-temperature alarm protection.

Key Features

• Temperature range: RT+20°C to 500°C, accuracy ±0.5°C
• PID intelligent controller with dual LCD for accurate monitoring and control
• Forced convection circulation for uniform heating
• Inner chamber: SUS316L stainless steel for corrosion resistance
• Alumina silicate fibre insulation for thermal retention
• Heater power: 3.6 kW optimized for efficient forced-air circulation
• Programmable timer: 0–9999 minutes
• Safety: over-temperature alarm

Applications

• High-temperature drying, curing and annealing processes
• Material testing and stability assessments
• Controlled heat treatment of components and small assemblies
• Use in electronics, chemical and aerospace laboratories requiring precise high-temperature processing

Specifications
Model NO.: FOV-17
Heating Method: Forced Convection
Temp Range: RT+20–500°C
Accuracy: ±0.5°C
Uniformity: 2.50%
Inner Chamber: SUS316L
Insulation: Alumina silicate fibre
Heater Power: 3.6 kW
Controller: PID intelligent
Display: Dual LCD
Timing: 0–9999 min
Safety: Over-temp alarm
Chamber Size (mm): 350×350×400
Volume (L): 50
Power Supply: AC380V/5.5A
Package Size: 901×649×845 mm
Net Weight: 44 kg
Gross Weight: 54 kg

Technical specifications

• Model NO.: FOV-17
• Volume: 50 L
• Chamber dimensions: 350 × 350 × 400 mm
• Temperature range: RT+20°C to 500°C
• Temperature accuracy: ±0.5°C
• Temperature uniformity: 2.50%
• Heating method: Forced convection
• Inner chamber material: SUS316L stainless steel
• Insulation: Alumina silicate fibre
• Heater power: 3.6 kW
• Controller: PID intelligent with dual LCD display
• Timer range: 0–9999 minutes
• Safety feature: Over-temperature alarm
• Power supply: AC380V/5.5A
• Package size: 901 × 649 × 845 mm
• Net weight: 44 kg; Gross weight: 54 kg
