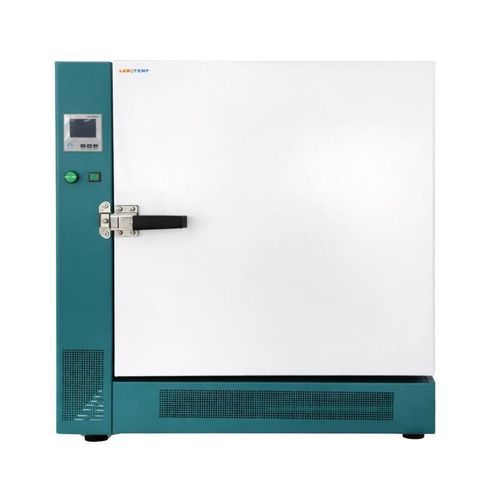

Hot air oven FOV-19

annealingthermalsintering

Product Overview
Labotemp Hot Air Oven FOV-19 is an ISO and CE certified forced-convection laboratory oven for high-temperature thermal processing, precision drying, annealing and thermal aging up to 600°C. The oven maintains uniform internal temperature through continuous hot-air circulation and provides precise PID control with dual LCD display for reliable process control in research and industrial labs. The inner chamber is SUS309S stainless steel with alumina silicate fibre insulation. Programmable timing (0–9999 min) and over-temperature alarm enhance operational safety.

Key Benefits

• Stable temperature control via PID intelligent controller with Dual LCD for accurate high-temperature processes.
• Resistant interior: SUS309S stainless steel chamber with alumina silicate fibre insulation for long-term thermal reliability.
• Effective forced convection heating (4.5 kW) ensuring uniform temperature in the 91 L chamber.
• Operational safety and control: over-temperature alarm and programmable timer (0–9999 min).

Features

• SUS309S heat-shield inner chamber.
• Wide temperature range RT+20°C to 600°C with ±0.5°C accuracy.
• PID intelligent dual-LCD controller for precise regulation and monitoring.
• 4.5 kW forced-convection heating system.
• Programmable timing (0–9999 min) and over-temperature alarm protection.
• Chamber volume 91 L (450×450×450 mm).

Applications

• High-temperature drying, annealing, sintering and thermal aging for research and industrial processes.
• Materials science, electronics, aerospace and chemical laboratories requiring uniform heating up to 600°C.
• Component treatment, heat-resistance studies and controlled high-temperature experiments.

Technical specifications

• Model NO.: FOV-19
• Heating Method: Forced Convection
• Temp Range: RT+20–600°C
• Accuracy: ±0.5°C
• Uniformity: 2.50%
• Inner Chamber: SUS309S stainless steel
• Insulation: Alumina silicate fibre
• Heater Power: 4.5 kW
• Controller: PID Intelligent
• Display: Dual LCD
• Timing: 0–9999 min
• Safety: Over-temp alarm
• Chamber Size: 450×450×450 mm
• Volume: 91 L
• Power Supply: AC 380V 50Hz
• Current: 6.8A
• Net Weight: 60 kg
• Gross Weight: 75 kg
• Package Size: 1050×780×1105 mm
