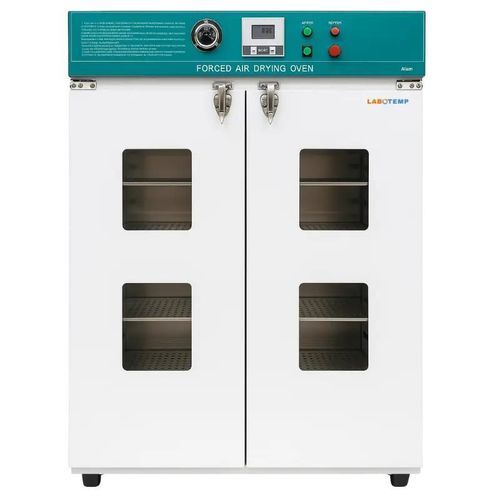

Hot air incubator drying oven FOV-21

forced convectionforced airlaboratory

Product Overview
Labotemp Industrial Drying Oven FOV-21 is a high‑capacity fan‑forced hot air oven designed for controlled drying, heating, curing and thermal processing in laboratory and industrial environments. The 1000 L chamber and recirculating airflow deliver uniform temperature distribution for batch processing, component conditioning and bulk material testing across electronics, automotive, chemical, aerospace and materials manufacturing sectors.

Construction & Control
The oven incorporates a stainless steel inner chamber with rock wool board insulation for thermal retention and durability. A 6.6 kW heating system with industrial fan circulation provides consistent heat. Temperature is regulated by a PID programmable controller with LCD display (accuracy ±1°C, uniformity ±3%). A programmable timer (0–9999 min) and overheat cut‑off protect unattended operations.

Key Benefits

• 1000 L chamber capacity for high‑volume batch drying and bulk processing.
• Accurate PID control and LCD monitoring for repeatable thermal cycles.
• Uniform heating via fan‑forced circulation and 6.6 kW heater.
• Durable stainless steel interior and effective rock wool insulation.
• Safety features including overheat cut‑off and long‑range programmable timer.

Features

• Temperature precision ±1°C.
• Temperature range RT+10–250°C.
• PID programmable controller with multi‑step and long‑duration programs.
• Stainless steel inner chamber and rock wool board insulation.
• 6.6 kW high‑power heating system for stable temperature distribution.
• Overheat cut‑off protection and timer 0–9999 minutes.

Applications

• High‑capacity drying, baking, curing and thermal processing in labs and production.
• Processing large components, bulk materials and heavy‑duty production tasks requiring controlled heating.
• Typical industries: electronics, automotive, chemical processing, aerospace, materials manufacturing.

Technical Specifications

• Model NO.: FOV-21
• Heating Method: Fan‑forced
• Temperature Range: RT+10–250°C
• Accuracy: ±1°C
• Uniformity: ±3%
• Inner Chamber: Stainless steel
• Insulation: Rock wool board
• Heater Power: 6.6 kW
• Controller: PID / Programmable
• Display: LCD
• Timing: 0–9999 min
• Safety: Overheat cut‑off
• Chamber Size (mm): 1000×1000×1000
• Volume: 1000 L
• Power Supply: 380V / 50/60Hz
• Package Size (mm): 1260×1290×1520
• Net Weight: 235 kg
• Gross Weight: 260 kg
