Annealing oven FOV-20

curingsinteringheating

Product Overview

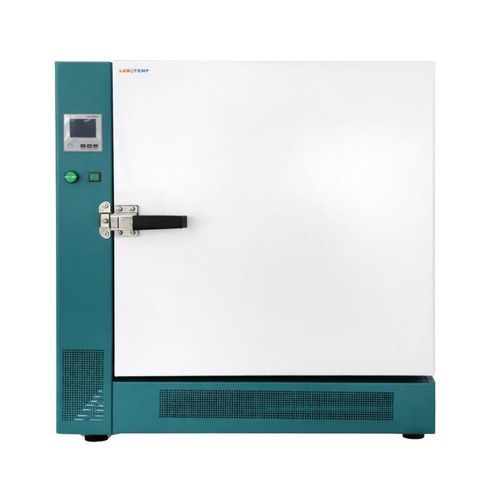

Labotemp Hot Air Oven FOV-20 is an ISO and CE certified high-temperature laboratory oven designed for demanding drying, curing, annealing, and thermal testing processes. It uses a forced convection heating system to distribute heated air evenly throughout the chamber, ensuring consistent and uniform thermal performance. The oven offers a temperature range of RT+20°C to 600°C with ±0.5°C accuracy and precise PID control.

Key points

• Large 208 L chamber capacity suitable for batch testing and larger samples.
• High temperature capability up to 600°C with stable PID control and Dual LCD display for monitoring.
• Forced convection system for uniform airflow and temperature distribution.

Features

• Dual LCD Display
• High-temperature performance from RT+20°C to 600°C with ±0.5°C precision
• PID intelligent Dual-LCD control system for precise thermal regulation and monitoring
• Robust SUS309S stainless steel inner chamber and alumina silicate fibre insulation for durability and thermal efficiency
• 5.1 kW forced-convection heating system delivering uniform temperature across the 208 L chamber
• Programmable timer (0–9999 minutes) and over-temperature alarm for enhanced safety

Applications

• High-temperature drying, annealing, sintering, curing, and thermal stability testing
• Aerospace, materials science, chemical analysis, and electronics manufacturing processes requiring uniform heating up to 600°C
• Processing large samples, heat-resistant materials, and high-precision thermal experiments

Technical specifications

• Model NO.: FOV-20
• Heating Method: Forced Convection
• Temperature Range: RT+20–600°C
• Accuracy: ±0.5°C
• Uniformity: 2.50%
• Inner Chamber: SUS309S stainless steel
• Insulation: Alumina silicate fibre
• Heater Power: 5.1 kW
• Controller: PID Intelligent
• Display: Dual LCD
• Timing: 0–9999 min
• Safety: Over-temp alarm
• Chamber Size (mm): 570 × 620 × 595
• Volume (L): 208
• Power Supply: AC 380V
• Current: 7.7A
• Package size: 1121 × 919 × 1149 mm
• Net Weight: 110 kg
• Gross Weight: 125 kg
