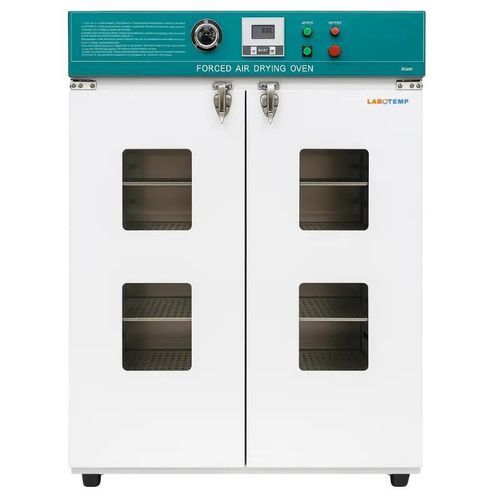

Drying oven FOV-22

thermalcuringheating

Overview
Labotemp Industrial Drying Oven FOV-22 is a high-capacity curing oven for large-scale heating, curing, baking and thermal processing in laboratory and industrial environments. The unit operates from RT+10°C to 250°C with ±1°C control accuracy and ±3% uniformity, providing stable and repeatable thermal conditions for bulk batch processing. The 1300 L chamber supports high-volume components and samples used in electronics, automotive, chemical and aerospace applications.

Design & Construction
The oven features an iron inner chamber and rock wool insulation for improved heat retention during extended cycles. A 9.0 kW heating system ensures effective temperature delivery across the large chamber. Temperature is managed via a PID programmable controller with LCD display for precise setpoint control and multi-step profiles.

Key Benefits

• Large 1300 L chamber for bulk material drying and processing
• Precise temperature control (PID programmable) with ±1°C accuracy for reproducibility
• 9.0 kW heater for uniform temperature distribution in heavy loads
• Iron inner chamber and rock wool insulation for thermal efficiency and industrial durability
• Safety features: overheat cut-off and programmable timer for unattended operation

Applications

• High-capacity drying, curing, baking and thermal treatment of industrial materials and components
• Electronics manufacturing, automotive production, chemical processing and aerospace engineering
• Pilot-scale production, stability testing and large-batch sample processing

Specifications

• Model NO.: FOV-22
• Temperature range: RT+10–250°C
• Accuracy: ±1°C
• Uniformity: ±3%
• Inner chamber: Iron chamber
• Insulation: Rock wool board
• Heater power: 9.0 kW
• Controller: PID / Programmable
• Display: LCD
• Timing: 0–9999 min
• Safety: Overheat cut-off
• Chamber size (mm): 1000×1000×1300
• Volume (L): 1300
• Power supply: 380V
