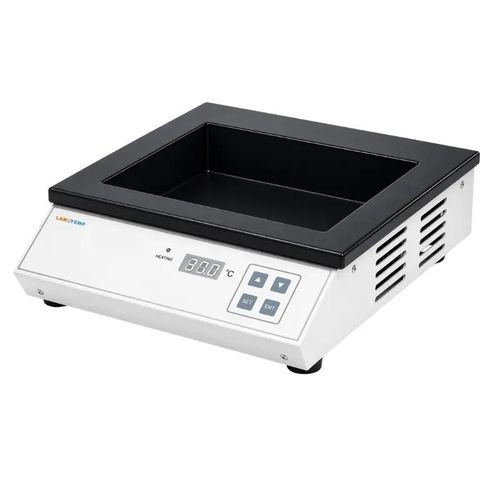

Histopathology water bath LTB-101

for scientific researchtissuefor histological sections

Product overview
Labotemp Tissue Flotation Bath LTB-101 is a precision unit for controlled expansion and flattening of paraffin-embedded tissue sections prior to slide mounting in histology and pathology laboratories. It delivers stable, uniform heating up to 100°C and incorporates a digital LED display showing set and actual temperatures for precise monitoring and control. The black anodized glass bath improves contrast for easier handling of sections, while the steel housing and optimized glass bath design ensure efficient heat distribution and long-term performance. The compact, energy-efficient design suits daily clinical and research workflows.

Key features

• Digital LED display indicating set and actual temperatures for accurate control
• Uniform heating for consistent tissue section expansion and flattening
• Black anodized bath surface to enhance contrast and visibility of sections
• Durable steel housing with optimized glass bath for efficient heat distribution
• Compact footprint suitable for space-constrained laboratory benches
• Low power consumption: 300 W
• Lightweight construction: approx. 3.5 kg for easy portability
• Protective housing with ventilation slots for improved heat dissipation

Applications

• Stretching and flattening of paraffin tissue sections before slide mounting in histology and pathology labs
• Supports routine diagnostics, biopsy preparation and research workflows requiring controlled heating up to 100°C
• Suitable for hospitals, clinical laboratories and academic research settings to ensure consistent sample preparation quality

Technical specifications

• Temperature range: room temperature to 100°C
• Voltage: AC 230V/50Hz; AC 120V/60Hz
• Recommended working environment: 5°C–40°C
• Power: 300 W
• Relative humidity: < 80%
• Product size (mm): L310 × W380 × H105
• Glass bath size (mm): L230 × W180 × H53
• Packing size (mm): 420 × 380 × 200
• Net weight: 3.5 kg
• Gross weight: 4.5 kg
