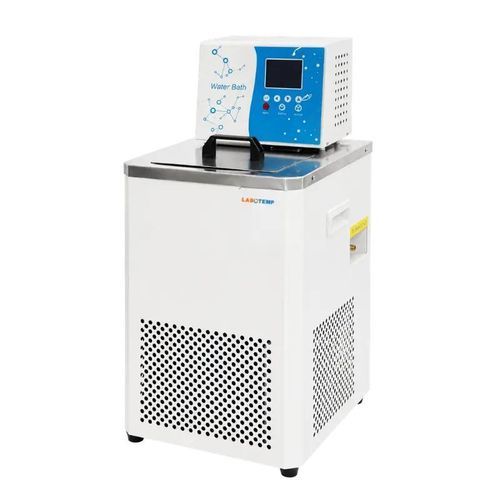

Water bath for the pharmaceutical industry LCB-101

for molecular and cellular biologyfor scientific researchfor calibration

Product overview
Labotemp Low Temperature Refrigerated Circulating Bath LCB-101 provides precise temperature control for laboratory processes requiring stable low-temperature environments for testing, calibration, sample preparation and research. The unit features a 10 L stainless steel bath, an integrated refrigeration system and a circulation pump, delivering uniform temperature distribution across the bath. Temperature range is -5°C to 100°C with high-resolution PID control for tight stability suitable for pharmaceutical, biotechnology, chemical, environmental and academic laboratories.

Design and reliability
LCB-101 is engineered for continuous laboratory use with a corrosion-resistant stainless steel tank and anti-corrosion housing. The concealed cooling coil preserves usable bath volume while improving heat exchange efficiency. A high-efficiency compressor, over-temperature and power protection systems, and a drain valve simplify operation and maintenance. External circulation connections enable temperature control of reactors, analytical equipment and process systems.

Why choose LCB-101

• High-precision PID temperature control for excellent stability and uniformity
• Dual functionality: direct sample immersion and external circulation
• Durable stainless steel construction with corrosion-resistant components

Features

• 10 L stainless steel tank
• Fast cooling and heating response
• User-friendly digital control panel
• Low-noise operation suitable for laboratory environments
• Efficient heat exchange system
• Durable ventilation structure for improved airflow
• Stable performance during continuous operation
• Corrosion-resistant construction
• Convenient drain valve design
• Over-temperature and power protection systems

Applications

• Temperature-sensitive laboratory procedures requiring precise control from -5°C to 100°C (sample conditioning, reagent handling, calibration, analytical testing, thermal stability studies)
• Pharmaceutical, biotechnology, chemical, environmental and academic laboratory experiments and quality control workflows
• External circulation to reactors, analytical instruments and process equipment for controlled temperature exchange

Caractéristiques / Spécifications techniques

• Tank Volume: 10 L
• Temperature Range: -5°C to 100°C
• Power Supply: 220V 50Hz
• Temperature Resolution: 0.01°C
• Temperature Volatility (Stability): ±0.05°C
• Power: 1.3 kW
• Slot Opening: 180 × 160 mm
• Groove Depth: 200 mm
• Lift: 1.4 m
• Pump Flow: 6 L/min
• Temperature Control: PID Control
• Temperature Sensor: PT100
• Drain Valve: Yes
• Built-in Compressor: Yes
• Construction Material: Stainless Steel Tank, Anti-corrosion Shell
• Dimensions (W×D×H): 320 × 370 × 765 mm
• Net Weight: 39 kg
• Gross Weight: 45 kg
• Package Size: 540 x 470 x 980 mm
