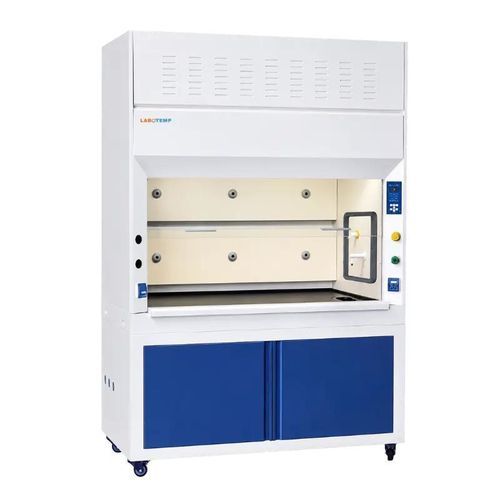

Chemical fume hood LFH-103

containmentexhaustfor the food industry

Overview
LFH-103 ducted fume hood provides operator and environmental protection by capturing and exhausting hazardous fumes, vapors, gases and aerosols via a negative-pressure ventilation system. Designed for routine chemical handling, research and quality-control tasks, it features a chemical-resistant work surface and adjustable face velocity for controlled extraction.

Why Choose LFH-103

• Effective extraction: Adjustable face velocity 0.3–0.8 m/s with negative-pressure airflow for reliable removal of hazardous emissions.
• Laboratory safety: UV sterilization, tempered glass sash, front bypass airflow and chemical-resistant work surface reduce contamination and exposure risks.
• Operational control: Microprocessor controller with LCD, airflow adjustment and memory protection for consistent performance and monitoring.

Features

• Microprocessor controller with LCD display for real-time status and adjustments.
• Adjustable airflow velocity 0.3–0.8 m/s.
• 20 W UV lamp and bright LED illumination.
• Chemical-resistant phenolic work surface and antimicrobial powder-coated steel cabinet.
• Front bypass airflow system with 5 mm tempered glass adjustable sash.
• Waterproof sockets, gas and water taps integrated into the work area.
• Variable-speed built-in centrifugal blower for stable exhaust performance.
• Memory function for saved settings and power-interruption protection.

Applications

• Chemical research and routine handling of hazardous reagents.
• Pharmaceutical manufacturing and quality control where controlled fume extraction is required.
• Industrial R&D for material testing and analytical procedures using corrosive chemicals and solvents.
• Environmental testing and sample preparation involving volatile substances.
• Biotechnology and life-science labs requiring controlled ventilation and sterilization capability.
• Food and beverage testing laboratories handling chemical analyses.

Standard Accessories

• Base cabinet.
• UV lamp and LED lamp.
• Waterproof socket and water sink.
• Gas and water remote control valves.

Optional Accessories

• Activated carbon filter.
• HEPA filter.
• Air velocity sensor.

Technical Specifications

• Airflow velocity: 0.3–0.8 m/s (adjustable)
• Maximum sash opening: 520 mm
• Work surface height: 850 mm
• Control system: Microprocessor controller with LCD display
• Illumination: ≥900 Lux
• Sound emission: ≤68 dB(A)
• UV lamp: 20 W × 1
• LED lamp: 8 W × 1
• Blower: Built-in centrifugal blower, speed adjustable
• Power consumption: 400 W
• Power supply: AC 220V/110V, 50/60 Hz
• Cabinet exterior: Electro-galvanized steel with antimicrobial powder coating
• Cabinet interior: Compact laminate board with acid and alkali resistance
• Work surface: Solid physicochemical (phenolic) board, acid and alkali resistant
• Front window: Manual sash, 5 mm toughened glass, height adjustable
• External dimensions (W × D × H): 1040 × 800 × 2200 mm
• Internal dimensions (W × D × H): 820 × 670 × 730 mm
• Net weight: 208 kg
• Gross weight: 286 kg
• Package size (main body): 1190 × 990 × 1690 mm
• Package size (base cabinet): 1190 × 990 × 900 mm
