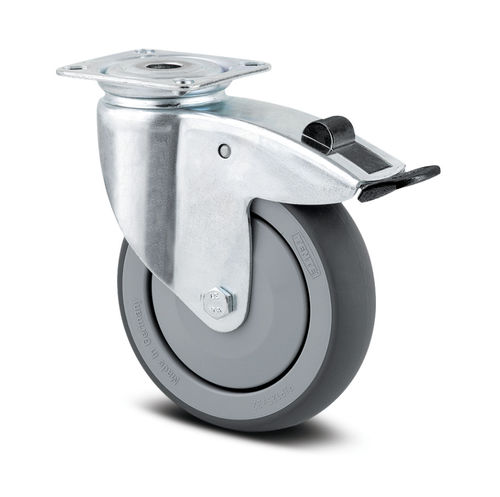

Medical trolley wheel Agila

for hospital bedrubberpolypropylene

Overview
The Agila swivel castor with directional lock features a rectangular plate fitting for secure mounting. The housing is made from medium steel sheet with zinc plating and the swivel action uses two ball race rows to ensure smooth directional movement and reliable locking. The wheel has a polypropylene body with a thermoplastic rubber tread, a precision ball bearing and a threadguard for uninterrupted operation.

Key features

• Materials compliant with RoHS / REACH
• Tested quality (internal lab, compliant with European standards)
• Pressed steel housing, zinc plated
• Multiple fitting and mounting options
• Threaded axles for easy wheel replacement
• Low-maintenance wheels with threadguard
• Non-marking movement

Typical applications

• Care beds and medical furniture
• Catering carts and meal distribution systems
• Hospitals, nursing and retirement homes
• Professional cleaning trolleys
• Store fixtures and display equipment

Identifiers
Series: Agila
Order number: 990030261
Product number / Reference: 2471PJP100P50
EAN: 4031582301410

Technical specifications

• Wheel diameter: 100 mm
• Overall height: 135 mm
• Dynamic load capacity (up to 3 km/h): 100 kg
• Static load capacity: 200 kg
• Overall width: 60 mm
• Overall weight: 0.82 kg
• Temperature range: -20 °C to 60 °C
• Tread material: Thermoplastic rubber
• Tread hardness: 87 Shore A
• Tread width: 32 mm
• Body material (wheel): Polypropylene
• Wheel colour: Silver grey (RAL7001)
• Bearing (wheel): Precision ball bearing
• Swivel bearing: Two ball race rows
• Threadguards: With threadguard
• Fitting type: Rectangular plate
• Plate dimensions: 77 x 67 mm
• Plate hole diameter: 8.5 mm
• Plate hole length (max / min): 51.5 mm / 46.5 mm
• Plate hole width (max / min): 61.5 mm / 56 mm
• Plate length: 77 mm
• Plate width: 67 mm
• Fork material: Medium steel sheet
• Fork shape: Broad
• Dome diameter: 60 mm
• Swivel interference: 262 mm
• Offset: 43.5 mm
• Swivel radius: 131 mm
• Standard: EN12530 - Devices Castors
