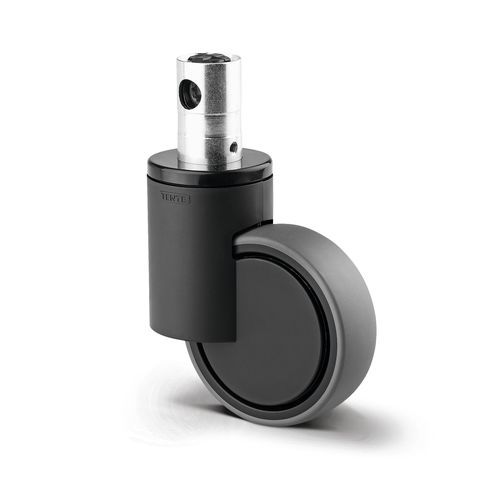

Medical trolley wheel Integral smart

for hospital bedwith brakepolyamide

Product overview
The Integral smart is a swivel castor with central, total or directional lock, fitted with a short stem with cam hole for profile bars. The pressed-steel housing and precision ball bearing swivel ensure smooth, low-maintenance operation. The wheel has a polyamide body with injected polyurethane tread and precision ball bearings.

Key advantages

• Non-hazardous materials (RoHS / REACH compliant)
• Tested quality with TÜV Süd monitoring
• Award-winning, medical-focused design

Main features

• Wheel: polyamide body with injected polyurethane tread
• Tread hardness: 42 Shore D
• Integrated threadguard to reduce debris build-up
• Precision ball bearings for wheel and swivel
• Type: swivel castor with central, total or directional lock

Configuration / Options shown on the page

• Wheel option: injected polyurethane, precision ball bearing, integrated threadguard
• Diameter: 100 mm
• Overall height: 130 mm
• Dynamic load capacity: 100 kg (at 3 km/h and 4 km/h)
• Static load capacity: 200 kg
• Housing colour: Graphite black (RAL9011)
• Fitting: short stem with cam hole for profile bars — bolt Ø 32 mm, length 50 mm

Applications

• Anaesthesia carts
• C-arms and mobile imaging stands
• CT and MRI equipment
• X‑ray and ultrasound equipment
• Dialysis carts and treatment trolleys
• Hospital beds and patient handling equipment
• Hospitals, clinics and care homes

Special features

• Non-hazardous materials: complies with RoHS and REACH; free from PAHs and chromium (VI)
• Tested quality: laboratory-tested to relevant European standards and monitored by TÜV Süd
• Solid housing: pressed steel, zinc plated (light material)
• Prevents unintended movement: manual wheel lock
• Total lock: simultaneous locking of wheel and swivel housing
• Central lock: locks multiple castors simultaneously via central actuation lever
• Award-winning design recognised by international juries
• Low-maintenance: thread guards reduce cleaning effort
• Non-marking movement with low abrasion
• Ergonomic roll resistance to reduce user effort
• Certified safety: TÜV Süd certified performance standard

Performance indicators (as presented)

• Roll performance: High
• Movement noise: Moderate to good
• Wear resistance: High
• Corrosion resistance: Good

Technical specifications

• Product name: Integral smart
• Series: Integral smart
• Article / Product number: 1044UAP100R36-32 S35 RAL9011
• EAN: 4031582455311
• Diameter: 100 mm
• Overall height: 130 mm
• Overall width: 62 mm
• Tread width: 32 mm
• Wheel body: Polyamide
• Tread material: Polyurethane, injected
• Tread hardness: 42 Shore D
• Wheel bearing: Precision ball bearing
• Swivel bearing: Precision ball bearing
• Dynamic load capacity (3 km/h): 100 kg
• Dynamic load capacity (4 km/h): 100 kg
• Static load capacity: 200 kg
• Weight (per castor): 0.88 kg
• Housing material: Pressed steel, zinc plated (light)
• Fork shape: Closed
• Housing colour: Graphite black (RAL9011)
• Fitting type: Stem with cam hole for profile bars, short version
• Bolt / stem diameter: 32 mm
• Bolt / stem length: 50 mm
• Swivel interference: 180 mm
• Offset: 40 mm
• Swivel radius: 90 mm
• Temperature range: -30 °C to 80 °C
• Standard: similar to EN12531 - Hospital Bed Castors
• Certification: Tested and monitored by TÜV Süd
• Electrically conductive: not indicated / not conductive for this configuration
• Stainless variant: not applicable for this configuration
