Medical trolley wheel ICS

for hospital bedanti-staticwith brake

Product overview

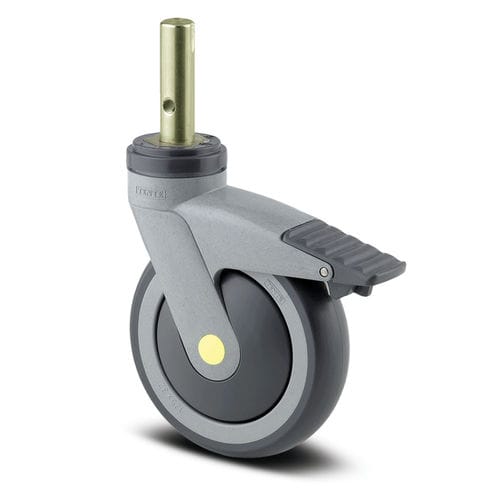

The ICS swivel castor with total lock is designed for secure mounting and controlled mobility in healthcare and similar environments. It features a solid stem, round fitting (Ø18 mm × 62 mm) and a slim polyamide fork housing with a stem-mounted swivel bearing. The wheel comprises a conductive polyamide body with an injected, conductive polyurethane tread. Bearings are precision sealed ball bearings. Wheel diameter is 125 mm with an overall height of 162 mm. The castor provides manual wheel locking and a total lock that secures both wheel and swivel housing, and supports electrical conductivity for ESD protection.

Key features

• Swivel castor with total lock (simultaneously locks wheel and swivel housing)
• Solid stem, round fitting (bolt Ø 18 mm, length 62 mm)
• Wheel: conductive polyamide body with injected conductive polyurethane tread
• Bearing: sealed precision ball bearing
• Integrated threadguard for unobstructed operation and easy cleaning
• Conductive version to manage electrostatic discharge (ESD)
• Non-hazardous materials — compliant with RoHS and REACH
• Tested quality meeting relevant European standards
• Colour matching available to adapt to product design

Special features

• Compliance: RoHS and REACH compliant; free of polycyclic aromatic hydrocarbons and chromium (VI)
• Sealed bearings protect against spray water and dirt, reducing maintenance
• Manual wheel lock prevents unintended movement
• Total lock secures both wheel and swivel housing for stable stand
• Integrated threadguard reduces cleaning effort and entanglement risk
• Non-marking tread reduces abrasion and floor marking
• Optimised roll resistance to reduce user effort during manoeuvring
• Certified conductive option available for ESD-sensitive environments
• Colour matching possible for integration with equipment design

Usage / Applications

• Healthcare furniture and equipment (care beds, medical trolleys, treatment carts)
• Environments requiring ESD protection or conductive wheel solutions
• Applications where combined mobility and secure total locking are required

Technical specifications

• Product name / Series: ICS
• Article number: 5327XSX125R05-18x62
• EAN: 4031582367720
• Type: Swivel castor with total lock
• Wheel diameter: 125 mm
• Overall height: 162 mm
• Tread width: 32 mm
• Dynamic load capacity (3 km/h): 100 kg
• Static load capacity: 200 kg
• Overall weight (single): 0.76 kg
• Wheel body material: Polyamide, conductive
• Tread material: Polyurethane, injected, conductive
• Bearing type: Precision ball bearing, sealed
• Tread hardness: 92 Shore A (approx. 40 Shore D)
• Fitting type: Solid stem, round
• Bolt/stem diameter: 18 mm
• Bolt/stem length: 62 mm
• Fork shape: Slim
• Fork material: Polyamide
• Swivel bearing: Stem-mounted swivel
• Swivel interference (diameter): 259 mm
• Offset: 38 mm
• Threadguards: Integrated threadguard
• Temperature range: -10 °C to 40 °C
• Standard: EN12530 (castors for devices)
• Electric conductive: Yes (certified/conductive version available)
