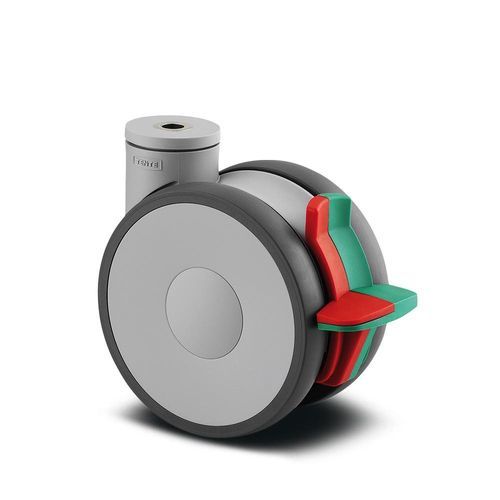

Medical trolley wheel Linea

for hospital bedwith brakepolyamide

Product overview
The Linea swivel castor with combined lock is designed for secure bolt-hole mounting and reliable, low-noise mobility on medical and professional equipment. The polyamide housing integrates a precision ball bearing swivel system. The wheel body is polyamide with an injected polyurethane tread. Wheel diameter 150 mm; overall height 170 mm. Load ratings: dynamic 130 kg (at speeds up to 3 km/h) and static 260 kg. Typical applications include medical equipment, hospital and care furniture, office and catering trolleys, and professional cleaning equipment.

Key features

• Bolt hole fitting (bolt hole diameter 13 mm) for secure mounting
• Swivel castor with combined lock (directional lock + total lock)
• Housing material: polyamide
• Wheel body: polyamide with injected polyurethane tread
• Precision ball bearings in swivel and wheel for smooth operation
• Wheel diameter: 150 mm; overall height: 170 mm
• Tread hardness: 92 Shore A; tread width: 22 mm
• Tread type: injected polyurethane
• Thread guard included to ensure unobstructed operation
• Overall width: 89 mm; offset: 52 mm; swivel radius: 156 mm

Special features

• Material compliance: RoHS and REACH; free of polycyclic aromatic hydrocarbons and chromium (VI)
• Tested quality: internal testing and monitored testing by TÜV Süd
• Housing colour can be adapted to product design (this variant: Silver grey RAL7001)
• Colour-coded pedals: green for directional lock, red for total lock
• Optional painted finishes: gold, chrome or glossy colours
• Low-maintenance design with thread guard for reduced cleaning effort
• Non-marking movement with reduced abrasion
• Chemical-resistant components compatible with many cleaning agents
• Optimised manoeuvrability thanks to twin-wheel differential effect
• Integrated cable protection (cable pusher) to protect cables on the floor
• Options for individual branding: engraved, cast or printed marking and full wheel cap image prints

Technical specifications

• Product name / series: Linea
• Article number: 594CUAP150P30-13 ral7001
• EAN: 4031582411409
• Type: Swivel castor with combined lock
• Housing colour: Silver grey (RAL7001)
• Wheel diameter: 150 mm
• Overall height: 170 mm
• Overall width: 89 mm
• Tread material: Polyurethane, injected
• Tread hardness: 92 Shore A
• Tread width: 22 mm
• Wheel body material: Polyamide
• Bearing (wheel & swivel): Precision ball bearing
• Fitting type: Bolt hole
• Bolt hole diameter: 13 mm
• Load capacity (at 3 km/h): 130 kg (dynamic)
• Load capacity (static): 260 kg
• Overall weight: 1.3 kg
• Temperature range: -20 °C to 60 °C
• Dome diameter: 56 mm
• Swivel interference: 312 mm
• Offset: 52 mm
• Swivel radius: 156 mm
• Standard: EN12530 - Devices Castors
• Certification: Tested and monitored by TÜV Süd
