Polyamide wheel Agila

rubber

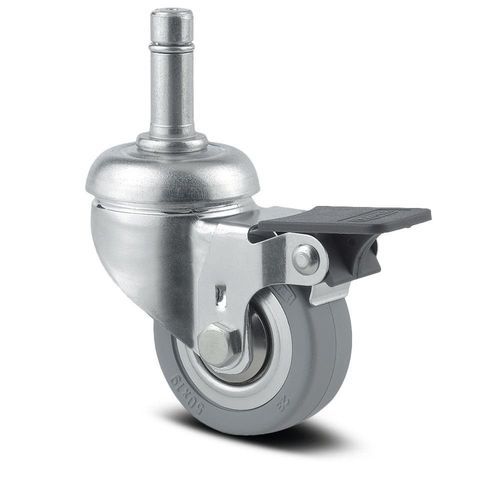

Short description The Agila swivel castor with wheel brake features a stem with grip ring and collar fitting for secure attachment. The pressed steel housing with zinc plating includes two ball races in the swivel bearing for smooth directional movement. The 50 mm wheel has a sheet-steel body with a 19 mm wide solid rubber, non-marking tread and a cone ball bearing for reliable roll performance. Overall height: 72 mm. Load capacity: dynamic 40 kg (at 3 km/h); static 80 kg. Typical applications include care beds, catering and meal delivery trolleys, hospitals, nursing homes and professional cleaning equipment.

Features

• Wheel diameter: 50 mm
• Overall height: 72 mm
• Dynamic load capacity (at 3 km/h): 40 kg
• Static load capacity: 80 kg
• Wheel body: sheet steel
• Tread: solid rubber, non-marking; tread width: 19 mm
• Bearing (wheel): cone ball bearing
• Swivel bearing: two ball races
• Threadguard: with threadguard

Configurator / Options (as shown on page)

• Wheel: solid rubber, non-marking; cone ball bearing; with threadguard
• Diameter options: 35 (unavailable), 50 (selected), 75 (unavailable), 100 (unavailable), 125 (unavailable), 150 (unavailable)
• Housing colour: blue passivated
• Type: swivel castor with wheel brake
• Fitting dimensions: stem with grip ring, with collar; stem diameter 11 mm (11 x)

Product advantages / special features

• RoHS and REACH compliant — no polycyclic aromatic carbons or chromium (VI)
• Tested quality — manufacturer laboratory tests for compliance with European standards (EN12530)
• Variable fitting options — multiple stem fittings for broad application range
• Durable housing — pressed steel, zinc plated
• Prevents unintended movement — manual wheel lock
• Easy maintenance — threaded axles for straightforward wheel replacement
• Low-maintenance operation — thread guards reduce obstruction and cleaning effort
• Non-marking movement — reduced abrasion for minimal floor cleaning
• Easy steering — double ball race swivel head
• Fast assembly — plug-in fittings for quicker installation

Performance (summary)

• Roll performance: above average (3/5)
• Movement noise: above average (3/5)
• Wear (attrition): above average (3/5)
• Corrosion resistance: above average (3/5)

Technical specifications

• Article Number: 2475DIK050B10-11x31
• EAN: 4031582301687
• Product name / series: Agila
• Type: Swivel castor with wheel brake
• Wheel diameter: 50 mm
• Overall height: 72 mm
• Tread width: 19 mm
• Wheel body material: sheet steel
• Tread material: solid rubber, non-marking
• Tread hardness: 80 Shore A
• Bearing (wheel): cone ball bearing
• Swivel bearing: two ball races
• Fitting type: stem with grip ring, with collar
• Stem diameter: 11 mm
• Fork shape: broad
• Fork material: medium grade sheet steel
• Offset: 24 mm
• Load capacity (dynamic at 3 km/h): 40 kg
• Load capacity (static): 80 kg
• Overall weight: 0.26 kg
• Temperature range: -20 °C to 85 °C
• Standard: EN12530 - Castors
• Electrically conductive: no
• Stainless: no
