Anti-static wheel Lumina

rubberpolypropyleneswiveling

Overview

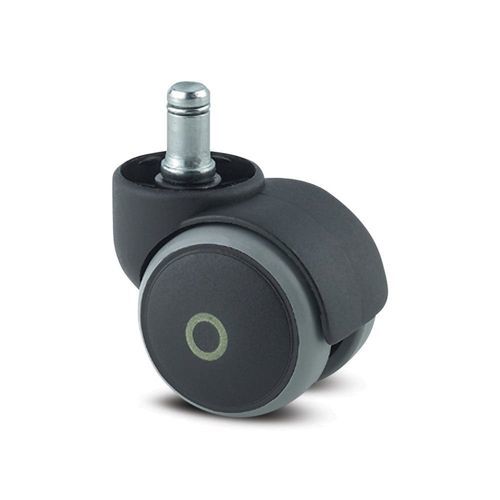

The Lumina swivel castor with stem and collar fitting provides secure mounting for industrial and commercial applications. The polypropylene housing integrates a stem-based swivel bearing for smooth directional changes under load. The wheel assembly features an electrically conductive polypropylene body with a thermoplastic rubber (TPR) tread that maintains conductivity during operation. The wheel runs on a plain bearing with an integrated spacer tube to reduce friction and increase durability. Wheel diameter: 50 mm; overall height: 61 mm, suitable for compact installations where space is limited. This configuration is intended for applications requiring electrostatic discharge protection while preserving mobility performance.

Key points

• Non-hazardous materials (RoHS and REACH compliant)
• Tested quality for industrial use
• Customisable colour matching and painted finish options

Features

• Wheel diameter: 50 mm
• Overall height: 61 mm
• Wheel tread: Thermoplastic rubber (TPR), electrically conductive
• Wheel body: Polypropylene, electrically conductive
• Bearing: Plain bearing with spacer tube
• Fitting type: Stem with grip ring and collar
• Stem diameter: 11 mm
• Fork material: Polypropylene
• Fork shape: Twin wheel housing, closed, with dome
• Dome diameter: 45 mm
• Tread width: 8 mm
• Hardness of tread: 87 Shore A
• Axle: Riveted
• Threadguards: Without threadguard

Special features

• Complies with RoHS and REACH; non-hazardous (no polycyclic aromatic hydrocarbons or chromium VI)
• In-house testing for compliance with European standards
• Multiple fitting options for varied applications
• Colour matching and painted finishes: gold, chrome or glossy colours
• Different dome diameters for improved visual integration
• Robust cover options: die-cast zinc or synthetic materials
• Non-marking movement with reduced abrasion and low cleaning requirement
• Fast assembly using plug-in fittings
• Certified conductivity to protect users and devices from electrostatic discharge
• Chemical-resistant components, tolerant to many cleaning agents
• Optimised manoeuvrability due to twin wheel differential effect
• Reduced cleaning effort thanks to mainly smooth surfaces

Technical specifications

• Article number: A520YGI050B10-11x20 DOM45
• EAN: 4031582341751
• Series / Product name: Lumina
• Type: Swivel castor
• Diameter: 50 mm
• Overall width: 55 mm
• Overall height: 61 mm
• Tread width: 8 mm
• Tread material: Thermoplastic rubber (TPR), electrically conductive
• Body material: Polypropylene, electrically conductive
• Hardness of tread: 87 Shore A
• Bearing: Plain bearing with spacer tube
• Axle: Riveted
• Fitting type: Stem with grip ring, with collar
• Stem diameter: 11 mm
• Fork shape: Twin wheel housing, closed, with dome
• Fork material: Polypropylene
• Dome diameter: 45 mm
• Swivel interference: 102 mm
• Swivel radius: 51 mm
• Overall weight: 0.11 kg
• Temperature range: -10 °C to 40 °C
• Electric conductive: yes
• Stainless: no
