Medical trolley wheel Linea

for hospital bedanti-staticpolyamide

Overview

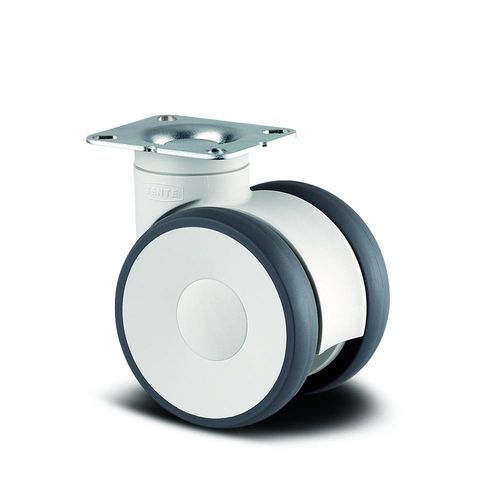

The Linea swivel castor is a 100 mm diameter conductive-wheel swivel castor with a rectangular plate fitting (95 x 70 mm), designed for medical and professional mobile equipment. The polyamide housing and precision ball bearing swivel provide smooth steering and durable operation. The wheel combines a conductive polyamide body with an injected conductive polyurethane tread (92 Shore A). Overall height: 124 mm; suitable for medium-duty applications requiring ESD control.

Advantages

• Conductive wheel and tread for electrostatic discharge control
• Tested quality and compliance with EN12530
• Colour-matched grey-white housing (RAL9002)

Key features

• Wheel diameter: 100 mm
• Overall height: 124 mm
• Dynamic load (at 3 km/h): 120 kg
• Static load: 240 kg
• Overall width: 82 mm

Wheel / Options

• Wheel body: Conductive polyamide
• Tread: Injected conductive polyurethane; hardness 92 Shore A; tread width 20 mm
• Bearing: Precision ball bearing (wheel and swivel)
• Threadguard: With threadguard

Fitting

• Fitting type: Rectangular plate 95 x 70 mm
• Plate hole diameter: 11 mm
• Plate hole maximum length: 75 mm
• Plate hole maximum width: 50 mm

Technical specifications

• Product name: Linea
• Article number: 5940XSP100P51 RAL9002
• EAN: 4031582352139
• Type: Swivel castor (twin wheel housing)
• Tread width: 20 mm
• Housing material: Polyamide
• Working temperature: -10 °C to 40 °C
• Standard: EN12530

Applications

• Medical trolleys and equipment (anesthesia carts, imaging devices)
• Hospital furniture and mobile devices (beds, patient lifts, dialysis carts)
• Professional service trolleys and equipment requiring ESD protection
