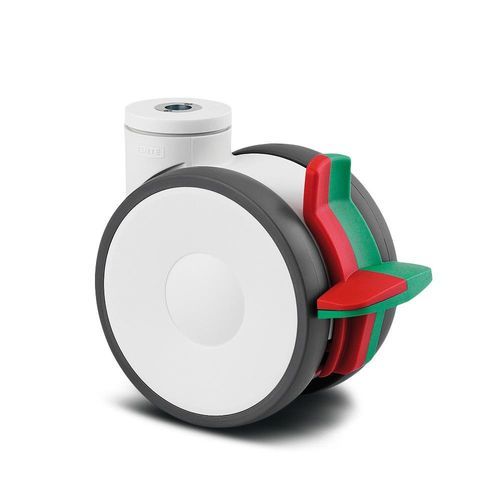

Medical trolley wheel Linea

for hospital bedpolyamidepolyurethane

Short description
The Linea swivel castor with combined lock (bolt‑hole fitting) is designed for safe, low‑noise mobility of medical and professional equipment. Polyamide housing and wheel body with precision ball bearings and an injected polyurethane tread deliver long service life and reliable roll performance. Wheel diameter 125 mm; overall height 143 mm; dynamic load 130 kg (at 3 km/h); static load 260 kg.

Key features

• Wheel diameter: 125 mm
• Overall height: 143 mm
• Load capacity (at 3 km/h): 130 kg
• Static load capacity: 260 kg
• Housing material: polyamide (twin wheel housing)
• Wheel body material: polyamide
• Tread material: injected polyurethane (92 Shore A)
• Bearing (swivel and wheel): precision ball bearing
• Threadguards: with threadguard
• Type: swivel castor with combined lock
• Fitting: bolt hole (13 mm)
• Housing colour: Grey white (RAL9002)
• Overall width: 82 mm
• Tread width: 20 mm
• Temperature range: -20 °C to 60 °C

Performance

• Roll performance: 5/5
• Movement noise: 3/5
• Wear resistance: 4/5
• Corrosion resistance: 4/5

Applications

• Medical trolleys and anesthesia carts
• Imaging equipment (C‑arm, CT, X‑ray), MRI‑compatible environments
• Care beds, patient lifts and nursing carts
• Laboratory and diagnostic equipment, sterile processing carts
• Catering trolleys, cleaning trolleys and professional furniture

Technical specifications

• Article number: 594CUAP125P30-13 RAL9002
• Series: Linea
• Brand: TENTE
• EAN: 4031582378313
• Diameter: 125 mm
• Overall height: 143 mm
• Overall width: 82 mm
• Tread width: 20 mm
• Load capacity (at 3 km/h): 130 kg
• Static load capacity: 260 kg
• Overall weight (single): ≈ 0.98 kg
• Housing material: polyamide
• Wheel body material: polyamide
• Tread material: polyurethane, injected
• Bearing: precision ball bearing (swivel and wheel)
• Fitting type: bolt hole (bolt hole diameter: 13 mm)
• Dome diameter: 52 mm
• Swivel interference (diameter): 258 mm
• Offset: 40 mm
• Swivel radius: 129 mm
• Standard: EN12530
• Temperature range: -20 °C to 60 °C
• Electric conductive: no
• Stainless: no

Compliance and benefits

• Tested and monitored by TÜV Süd
• Suitable for medical environments — non‑hazardous materials
• Low noise and high roll performance for easy manoeuvring
• Colour matching options (RAL9002) for equipment integration
