Medical trolley wheel Agila

for hospital bedrubberswiveling

Product description

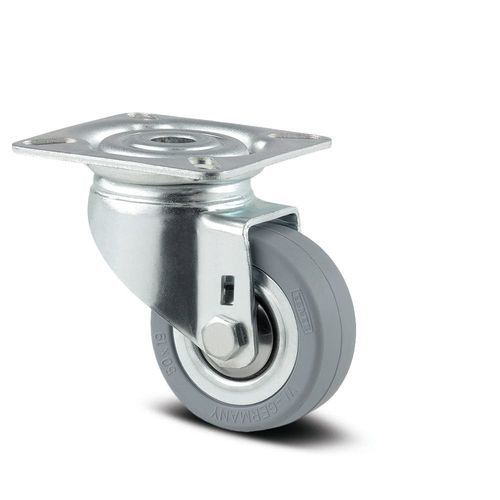

The TENTE Agila swivel castor with square plate fitting is designed for compact medical and professional equipment where smooth steering and non-marking movement are required. The pressed medium-gauge steel housing (zinc plated) incorporates two ball races in the swivel bearing for easy directional changes. The 50 mm wheel features a sheet-steel body with a solid rubber, non-marking tread mounted on a cone ball bearing and protected by a threadguard. Overall height is 69 mm, overall width 43 mm, making it suitable for tight installations.

Advantages / Special features

• Compliant materials (RoHS and REACH; no polycyclic aromatic carbons or chromium (VI))
• Laboratory-tested for compliance with EN12530
• Pressed steel housing (zinc plated) for durable performance
• Multiple fitting options for varied mounting requirements
• Threaded axle for easy wheel replacement to reduce downtime
• Threadguard reduces cleaning effort and exposure to contaminants
• Non-marking tread with low abrasion for sensitive floor coverings
• Double ball race swivel head for easy steering

Applications

• Care beds
• Catering carts and meal delivery systems
• Hospitals, nursing and retirement homes
• Professional cleaning carts
• Store fixtures and display units

Technical specifications

• Brand: TENTE
• Product name / series: Agila
• Article number: 2470DIK050P40
• S4 Material Number: 990003885
• EAN: 4031582010107
• Type: Swivel castor
• Wheel diameter: 50 mm
• Overall height: 69 mm
• Overall width: 43 mm
• Body width: 19 mm
• Tread width: 19 mm
• Tread material: Solid rubber, non-marking
• Body material (wheel): Sheet steel
• Tread hardness: 80 Shore A
• Wheel bearing: Cone ball bearing
• Swivel bearing: Two ball races
• Threadguards: With threadguard
• Load capacity (dynamic at 3 km/h): 40 kg
• Load capacity (static): 80 kg
• Temperature range: -20 °C to 85 °C
• Overall weight: 0.24 kg
• Fitting type: Square plate
• Plate length x width: 60 x 60 mm
• Plate hole diameter: 6.3 mm
• Plate hole length (min/max): 38 mm / 48 mm
• Plate hole width (min/max): 38 mm / 48 mm
• Dome diameter: 41 mm
• Swivel interference: 98 mm
• Offset: 24 mm
• Swivel radius: 49 mm
• Housing colour: Blue passivated
• Fork shape: Broad
• Fork material: Medium steel sheet
• Standard: EN12530 - Devices Castors
