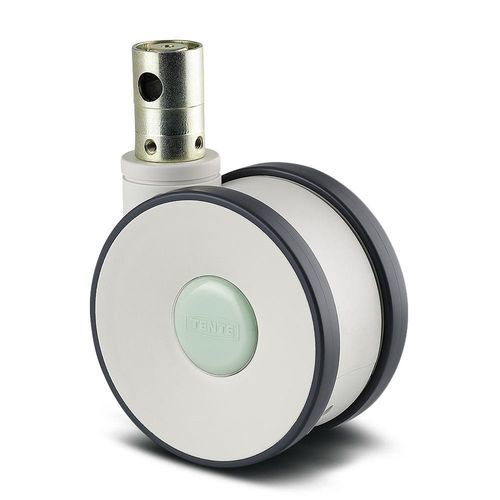

Stretcher wheel Linea clinic

for hospital bedfor medical trolleyspolyurethane

Product overview
The Linea clinic is a swivel castor with central, total or directional lock, designed for medical and care equipment. It features a stem with cam hole for profile bars (short version). The housing and wheel body are made of polyamide and the wheel tread is injected polyurethane. Precision ball bearings in the wheel and swivel ensure smooth, quiet operation. Wheel diameter: 150 mm. Overall height: 155 mm. Dynamic load capacity: 150 kg (at 3 km/h and at 4 km/h). Static load capacity: 450 kg.

Product advantages

• Non-hazardous materials: compliant with RoHS and REACH, free of polycyclic aromatic hydrocarbons and chromium (VI).
• Tested quality: laboratory-tested and monitored to meet European standards, TÜV Süd.
• Colour matching: housing and wheel colours can be adapted (standard grey white RAL9002).

Special features

• Prevents unintended movement: manual wheel lock for secure stopping.
• Secured stand: total lock locks wheel and swivel simultaneously.
• Central lock option: allows simultaneous locking of multiple castors via central actuation lever.
• Low-maintenance design: thread guards protect against entanglement and simplify cleaning.
• Non-marking tread: reduced abrasion for clean floors and minimal maintenance.
• Ergonomic operation: optimised rolling resistance to reduce effort for users and staff.
• Certified performance: TÜV Süd monitored and tested to applicable standards.
• High manoeuvrability: twin-wheel design with differential effect for improved steering.
• Low profile: reduced overall height for safe use under hospital beds and medical devices.

Applications

• Anaesthesia carts
• C-arms
• CT scanners
• MRI equipment
• X-ray equipment
• Computers on wheels (COWs)
• Dialysis carts
• Hospital beds
• Medication carts
• Nursing carts
• Stretchers
• Ultrasound equipment
• Ventilators

Technical specifications

• Product name: Linea clinic
• Article number / Product number: 5944UAP150R36-32S30 D 9002 4xM6
• EAN: 4031582338904
• S4 Material Number: 990033754
• Type: Swivel castor with central, total or directional lock
• Certification: Tested and monitored by TÜV Süd
• Standard: EN12531 - Hospital Bed Castors
• Wheel diameter: 150 mm
• Overall height: 155 mm
• Overall width: 71 mm
• Overall weight: 1.08 kg
• Load capacity (dynamic) at 3 km/h: 150 kg
• Load capacity (dynamic) at 4 km/h: 150 kg
• Load capacity (static): 450 kg
• Temperature range: -10 °C to 40 °C
• Wheel body material: Polyamide
• Tread material: Polyurethane, injected
• Tread width / Body width: 15 mm
• Hardness of tread: 92 Shore A / 42 Shore D
• Bearing (wheel & swivel): Precision ball bearing
• Threadguards: With threadguard
• Wheel colour & Housing colour: Grey white (RAL9002)
• Fork shape: Twin wheel housing
• Material fork: Polyamide
• Dome diameter: 45.5 mm
• Swivel interference: 254 mm
• Offset: 47.5 mm
• Swivel radius: 127 mm
• Fitting: Stem with cam hole for profile bars, short version
• Bolt mounting holes quantity: 4
• Bolt diameter: 32 mm
• Bolt length: 50 mm
• Bolt thread position: 7 mm
