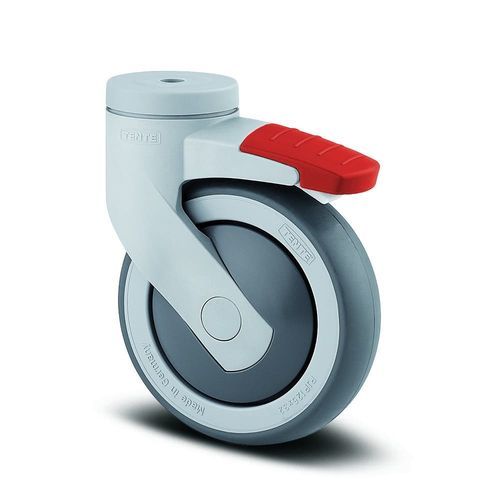

Wheel with brake Levina

polyamiderubberpolypropylene

Product overview
The Levina swivel castor with total lock is designed for secure, quiet and protected movement of professional and medical equipment. It features a bolt hole fitting (11 mm), a polyamide housing and a two-ball-race swivel bearing for smooth rotation. The wheel assembly combines a polypropylene body with a thermoplastic rubber tread (87 Shore A) and a precision ball bearing. Wheel diameter: 125 mm; overall height: 161 mm. Dynamic load capacity: 100 kg at 3 km/h; static load capacity: 200 kg.

Key advantages

• Non-hazardous materials (RoHS and REACH compliant).
• Tested quality for conformity with applicable standards.
• Colour matching available to integrate with equipment design.

Features

• Wheel: thermoplastic rubber tread, precision ball bearing, with threadguard.
• Diameter: 125 mm; tread/body width: 32 mm.
• Overall height: 161 mm; overall width: 59 mm; dome diameter: 59 mm.
• Type: swivel castor with total lock (locks wheel and swivel simultaneously).
• Fitting: bolt hole, Ø 11 mm.
• Swivel bearing: two ball races; fork: slim polyamide.
• Temperature range: -10 °C to +40 °C.

Special features

• Prevents unintended movement: manual wheel lock.
• Total lock secures both wheel and swivel housing.
• Threadguards reduce jamming and lower maintenance effort.
• Non-marking tread for reduced abrasion on floors.
• Double ball-race swivel head for improved manoeuvrability.
• Chemical-resistant components suitable for common cleaning agents.
• Low-noise operation and good shock absorption for sensitive environments.

Technical specifications

• Product name: Levina
• Article number: 5377PJP125P30-11 7001/3000
• EAN: 4031582368758
• Diameter: 125 mm
• Overall height: 161 mm
• Overall width: 59 mm
• Dome diameter: 59 mm
• Swivel interference: 201 mm
• Offset: 38 mm
• Swivel radius: 100.5 mm
• Dynamic load (at 3 km/h): 100 kg
• Static load: 200 kg
• Overall weight: 0.58 kg
• Tread material: thermoplastic rubber (87 Shore A)
• Wheel body material: polypropylene
• Bearing: precision ball bearing (wheel)
• Swivel bearing: two ball races
• Threadguards: with threadguard
• Bolt hole diameter (fitting): 11 mm
• Housing material: polyamide
• Fork shape/material: slim polyamide
• Wheel colour / Housing colour: Silver grey (RAL7001)
• Standard: EN12530 - Devices Castors
