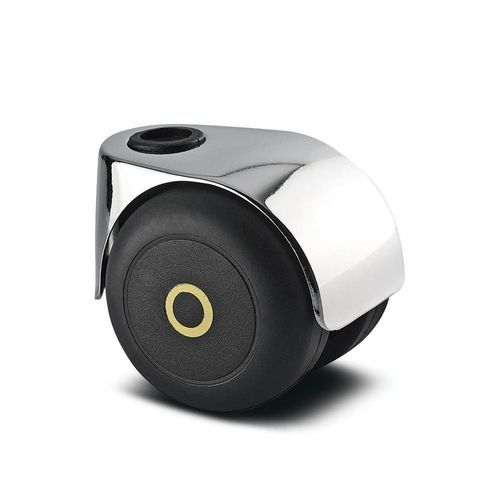

Anti-static wheel Lumina

rubberaluminumpolypropylene

Product description
The Lumina swivel castor is designed for blind hole B10 mounting. The housing is zinc die-cast and aluminium and the unit rotates on a stem swivel bearing for smooth movement. The 50 mm wheel features an electrically conductive polypropylene body with an electrically conductive thermoplastic rubber tread mounted on a plain bearing with spacer tube. Overall height 54 mm; dynamic load capacity 40 kg (at speeds up to 3 km/h); static load capacity 80 kg. Suitable for bedside tables, furniture, multimedia furniture and office furniture where certified electrical conductivity and mobility are required.

Features

• Diameter: 50 mm
• Overall height: 54 mm
• Overall width: 55 mm
• Tread width: 10 mm
• Tread hardness: 87 Shore A
• Dynamic load capacity (at 3 km/h): 40 kg
• Static load capacity: 80 kg
• Wheel body: Polypropylene, electrically conductive
• Tread: Thermoplastic rubber, electrically conductive
• Bearing: Plain bearing with spacer tube
• Fitting: Blind hole for B10 (bolt hole diameter 8 mm)

Special features

• Compliant with RoHS and REACH; free of PAHs and chromium (VI)
• Tested for compliance with European standards
• Housing and fork in zinc die-cast and aluminium; painted finish options available
• Certified conductive version to reduce electrostatic discharge risk
• Non-marking tread and low-maintenance materials
• Designed for easy cleaning and visual integration

Technical specifications

• Article number: 6A20YGI050L51-8
• EAN: 4031582311334
• Product name / series: Lumina
• Type: Swivel castor
• Diameter: 50 mm
• Overall width: 55 mm
• Overall height: 54 mm
• Tread width: 10 mm
• Tread hardness: 87 Shore A
• Body material: Polypropylene, electrically conductive
• Tread material: Thermoplastic rubber, electrically conductive
• Bearing: Plain bearing with spacer tube
• Axle: Riveted
• Fork material: Zinc-die-casting / Aluminium
• Swivel bearing: Stem, swiveling
• Swivel interference: 102 mm
• Swivel radius: 51 mm
• Dynamic load capacity (at 3 km/h): 40 kg
• Static load capacity: 80 kg
• Overall weight: 0.14 kg
• Temperature range: -10 °C to 40 °C
• Standard: EN12528 - Furniture Castors
• Electric conductive: yes
