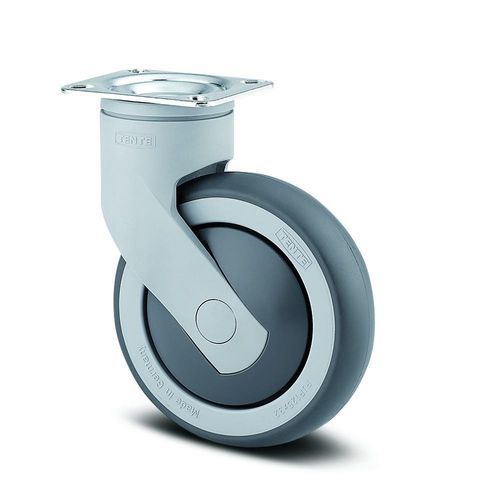

Medical trolley wheel Levina

for hospital bedpolyamiderubber

Short description
The Levina swivel castor is a plate-mounted 100 mm castor designed for secure installation on medical and institutional equipment. The polyamide housing incorporates a two-row ball race swivel bearing for smooth steering, while the polypropylene wheel with thermoplastic rubber (87 Shore A) tread and precision ball bearing ensures low rolling resistance. Overall height: 137 mm. Dynamic load (at up to 3 km/h): 100 kg. Static load: 200 kg.

Features

• RoHS and REACH compliant materials
• Tested to European device castor standards (EN12530)
• Colour matching available (Silver grey RAL7001)
• Threadguard included for reduced maintenance
• Non-marking tread option
• Chemical-resistant components suitable for frequent cleaning
• Double row ball race swivel bearing for easy steering
• Precision ball bearing in wheel for smooth rolling

Fitting and dimensions
Fitting type: Rectangular plate 77 x 67 mm
Plate hole diameter: 8.5 mm
Plate hole length (max/min): 51.5 mm / 46.5 mm
Plate hole width (max/min): 61.5 mm / 56 mm
Overall width: 59 mm
Offset: 36 mm
Swivel radius: 86 mm
Swivel interference: 172 mm
Dome diameter: 59 mm

Wheel
Diameter: 100 mm
Tread width: 32 mm
Body material: Polypropylene
Tread material: Thermoplastic rubber (87 Shore A)
Bearing: Precision ball bearing
Threadguards: With threadguard

Applications

• Medical equipment (anesthesia carts, dialysis carts, ventilators, ultrasound machines)
• Hospital and care furniture (beds, nursing trolleys, medication carts)
• Catering and service trolleys
• Cleaning and janitorial trolleys
• Workbenches, tool cabinets and commercial furnishing

Technical specifications

• Product name: Levina
• Article number / product number: 5370PJP100P50 7001
• EAN: 4031582347463
• S4 Material Number: 990035830
• Diameter: 100 mm
• Overall height: 137 mm
• Overall weight: 0.47 kg
• Overall width: 59 mm
• Tread width: 32 mm
• Body material: Polypropylene
• Tread material: Thermoplastic rubber
• Tread hardness: 87 Shore A
• Wheel bearing: Precision ball bearing
• Swivel bearing: Two-row ball race
• Fitting type: Rectangular plate (77 x 67 mm)
• Plate hole diameter: 8.5 mm
• Plate hole length (max/min): 51.5 mm / 46.5 mm
• Plate hole width (max/min): 61.5 mm / 56 mm
• Offset: 36 mm
• Swivel radius: 86 mm
• Swivel interference: 172 mm
• Dome diameter: 59 mm
• Load capacity at 3 km/h (dynamic): 100 kg
• Load capacity static: 200 kg
• Operating temperature range: -10 °C to 40 °C
• Standard: EN12530 - Devices Castors
• Housing colour: Silver grey (RAL7001)
• Fork material / housing: Polyamide
• Fork shape: Slim
• CO2 emission (scope 3): 2.01
