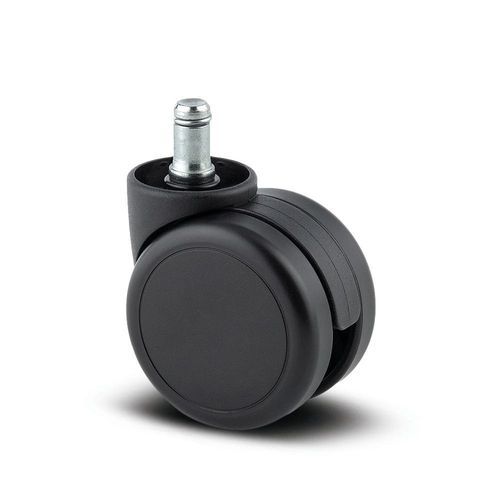

Swiveling wheel Stylea

polyamide

Short description
The Stylea swivel castor features a stem with grip ring and a collar fitting system for secure attachment. The housing is constructed from durable polyamide and incorporates a stem with a swivelling bearing mechanism that enables smooth directional changes. The wheel assembly consists of a 65 mm diameter polyamide wheel with tread material identical to the wheel body, supported by a plain bearing with spacer tube. The castor has an overall height of 72 mm and a load capacity of 50 kg (dynamic rating at speeds up to 3 km/h). Designed for furniture applications such as bedside tables, media furniture, office chairs and office furniture where mobility and manoeuvrability are required.

Features

• Wheel diameter: 65 mm
• Overall height: 72 mm
• Load capacity at 3 km/h: 50 kg

Product advantages

• Non-hazardous materials
• Tested quality
• Colour matching options

Special features

• Non-hazardous materials: Complies with RoHS and REACH regulations; does not contain polycyclic aromatic carbons or chromium (VI).
• Tested quality: Tested in the manufacturer's laboratory for compliance with European standards.
• Variable fitting options: Different fitting dimensions for a wide range of applications.
• Colour matching: Colours can be adapted to match the product design.
• Painted surface: Available in gold, chrome or glossy coloured finishes.
• Visual integration: Different dome diameters for a smooth transition between the castor and the application.
• Low wear and tear wheels: Durable wheels with extremely low wear properties.
• Fast assembly: Faster assembly process with use of plug-in fittings.
• Chemical-resistant components: Insensitive to many cleaning agents and chemical substances.
• Optimised manoeuvrability: Twin wheel castor with high manoeuvrability due to a differential effect.
• Reduced cleaning: Mainly smooth surfaces enable quick and easy cleaning.

Technical specifications

• Article Number: 5920UOI065B10-11x20 DOM32
• EAN: 4031582310870
• Type: Swivel castor
• Series / Product name: Stylea
• Overall width: 46 mm
• Overall height: 72 mm
• Load capacity at 3 km/h: 50 kg
• Overall weight: 0.12 kg
• Temperature range (minimum): -10 °C
• Temperature range (maximum): 40 °C
• Fitting type: Stem with grip ring, with collar
• Stem diameter: 11 mm
• Fork shape: Twin wheel housing
• Material fork: Polyamide
• Swivel bearing: Stem, swiveling
• Dome diameter: 32 mm
• Swivel interference: 106 mm
• Swivel radius: 53 mm
• Wheel diameter: 65 mm
• Tread width: 7 mm
• Tread hardness: 75 Shore D
• Body material (wheel): Polyamide
• Tread material: Identical with wheel body
• Threadguards: Without threadguard
• Axle: Riveted
• Bearing: Plain bearing with spacer tube
• Electrical conductive: No
• Stainless: No
