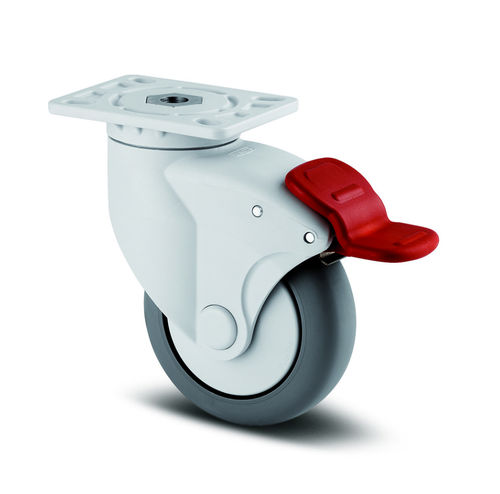

Medical trolley wheel Galea

for hospital bedfor stretcherwith brake

Short description
The Galea swivel castor with total lock is designed for medical and professional furniture requiring secure positioning and smooth mobility. It features a rectangular plate fitting (90 × 70 mm), a polyamide housing with two ball races for the swivel bearing, and a polypropylene wheel body with a thermoplastic rubber tread. The castor includes a threadguard and a total lock that secures both the wheel and the swivel housing.

Key features

• Rectangular plate fitting (90 × 70 mm)
• Housing material: polyamide
• Wheel body: polypropylene with thermoplastic rubber tread (non-marking)
• Swivel bearing: two ball races
• Wheel bearing: plain bearing
• With threadguard
• Total lock (locks wheel and swivel housing simultaneously)
• Complies with RoHS and REACH
• Tested to relevant European standards (EN12530)
• Colour options and painted surface finishes available
• User-friendly colour coding: green directional lock pedal, red total lock pedal
• Low-maintenance wheel compounds and good damping properties
• Chemical-resistant components suitable for many cleaning agents

Applications

• Hospital and care beds
• Medical carts and instrument trolleys
• Patient transport and stretcher systems
• Shower chairs and other hygiene/assisted-living furniture
• Clinical and institutional furniture requiring secure locking and easy manoeuvrability

Performance overview

• Roll performance: high
• Movement noise: low to moderate
• Abrasion / wear resistance: good
• Corrosion resistance: good

Technical specifications

• Product name / series: Galea
• Type: Swivel castor with total lock
• Article number: 5077PJH100P60-90x70
• EAN (GTIN13): 4031582367881
• Wheel diameter: 100 mm
• Overall height: 138 mm
• Tread material: thermoplastic rubber
• Tread hardness: 87 Shore A
• Wheel body material: polypropylene
• Tread width: 30 mm
• Wheel bearing: plain bearing
• Swivel bearing: two ball races
• Threadguard: with threadguard
• Fitting type: rectangular plate (plate length 90 mm × plate width 70 mm)
• Plate hole diameter: 8 mm
• Plate hole length (min / max): 60 mm / 70 mm
• Plate hole width (min / max): 50 mm / 55 mm
• Fork shape: closed
• Fork material: polyamide
• Offset: 40 mm
• Swivel interference diameter: 205 mm
• Load capacity (dynamic at up to 3 km/h): 100 kg
• Load capacity (static): 200 kg
• Overall weight: approx. 0.48 kg
• Operating temperature range: -20 °C to 60 °C
• Standard: EN12530 - Castors
• Electrical conductivity: not electrically conductive (not suitable)
• Stainless option: not applicable for this variant
