Polyamide wheel Lumina

swiveling

Product overview

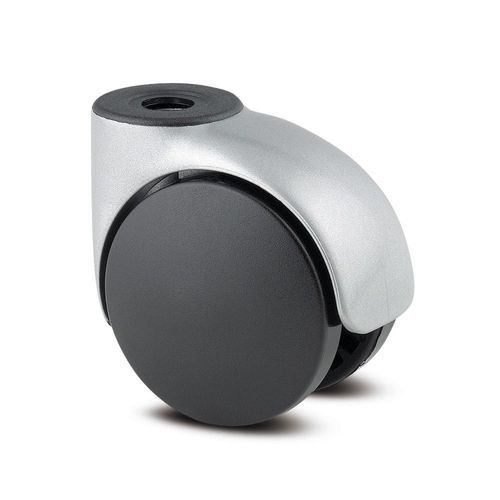

The Lumina swivel castor with blind hole for B10 fitting is engineered for secure mounting in furniture and equipment. The polyamide housing and twin-wheel fork provide consistent load distribution while the 75 mm polyamide wheel with plain bearing and spacer tube delivers reliable rotation and low wear.

Key advantages

• Compliance with RoHS and REACH; free from polycyclic aromatic carbons and chromium (VI)
• In-house tested to European standards for furniture castors (EN12528)
• Colour matching and painted finish options for visual integration

Features

• Wheel material: Polyamide (tread identical to wheel body)
• Wheel diameter: 75 mm
• Overall height: 88 mm
• Load capacity (dynamic at 3 km/h): 100 kg

Special features

• Variable fitting dimensions to suit wide range of applications
• Surface finishes: painted (gold, chrome, glossy colours) or RAL9006 housing
• Different dome diameters for visual integration
• Robust covers in die-cast zinc or synthetic material
• Low-wear wheel formulation for extended service life
• Chemical-resistant components compatible with common cleaning agents
• Optimised manoeuvrability with twin-wheel differential effect
• Mostly smooth surfaces to reduce cleaning effort

Technical data (table)
Article Number: 5520UOI075L51-11 RAL9006
EAN: 4031582310658
Type: Swivel castor
Overall width: 65 mm
Load capacity at 3 km/h: 100 kg
Load capacity (Static): 200 kg
Overall height: 88 mm
Temperature range (Maximum): 60 °C
Temperature range (Minimum): -20 °C
Overall weight: 0.28 kg
Product name: Lumina
Standard: EN12528 - Furniture Castors
Electric conductive: no
Stainless: no

Technical specifications

• Article number: 5520UOI075L51-11
• EAN: 4031582310658
• Series / Product name: Lumina
• Type: Swivel castor
• Wheel diameter: 75 mm
• Tread width: 10 mm
• Wheel body material: Polyamide
• Tread material: Identical with wheel body (polyamide)
• Hardness of tread: 75 Shore D
• Bearing: Plain bearing with spacer tube
• Axle: Riveted
• Overall width: 65 mm
• Overall height: 88 mm
• Load capacity (dynamic at up to 3 km/h): 100 kg
• Load capacity (static): 200 kg
• Fitting type: Blind hole for B10
• Bolt hole diameter: 11 mm
• Housing colour: White aluminium (RAL9006)
• Fork shape: Twin wheel housing, closed, with dome
• Material fork: Polyamide
• Swivel bearing: Stem, swiveling
• Dome diameter: 45 mm
• Swivel interference: 146 mm
• Offset: 30 mm
• Swivel radius: 73 mm
• Temperature range: -20 °C to 60 °C
• Overall weight: 0.28 kg
• Standard: EN12528 - Furniture Castors
