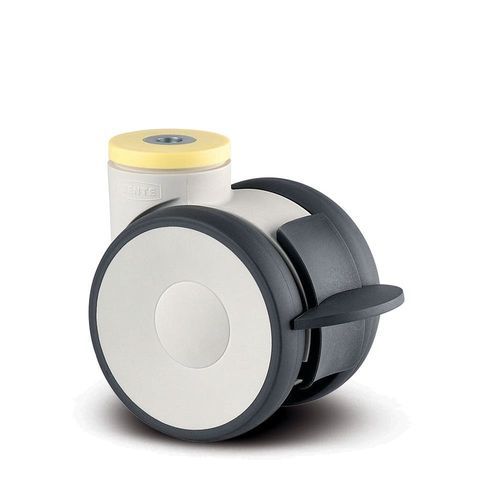

Medical trolley wheel Linea

anti-staticwith brakepolyamide

Product overview
The Linea swivel castor with total lock is engineered for medical and healthcare equipment that requires safe, conductive and low-maintenance mobility. It features a bolt hole mounting (Ø13 mm) in a polyamide twin-wheel housing with precision ball bearings and an injected conductive polyurethane tread for maintained electrical continuity.

Benefits for medical environments

• ESD-capable conductive tread and body to protect sensitive equipment
• Non-marking, low-abrasion tread to preserve floors and reduce cleaning
• Thread guards reduce ingress of debris and simplify maintenance
• Total lock secures both wheel and swivel to prevent unintended movement
• Chemical-resistant materials suitable for common hospital cleaning agents

Key features

• Wheel: Injected polyurethane, electrically conductive
• Wheel body: Polyamide, electrically conductive
• Bearings: Precision ball bearing (wheel and swivel)
• Threadguard: Yes
• Diameter: 100 mm
• Overall height: 118 mm
• Load capacity (3 km/h, dynamic): 120 kg
• Static load capacity: 240 kg

Applications

• Anesthesia and medication carts
• Medical imaging devices (C-arm, CT, MRI, X-ray)
• Surgical and treatment trolleys, patient lifts
• Mobile medical computers and monitoring equipment
• Hospital furniture, rehabilitation and long-term care equipment

Technical specifications

• Product name: Linea
• Article number: 5947XSP100P30-13 RAL9002 nc
• EAN: 4031582350579
• Type: Swivel castor with total lock
• Wheel diameter: 100 mm
• Tread width: 20 mm
• Tread hardness: 92 Shore A
• Body material: Polyamide, electrically conductive
• Tread material: Polyurethane, injected, electrically conductive
• Bearing: Precision ball bearing
• Swivel bearing: Precision ball bearing, dome Ø52 mm
• Overall width: 82 mm
• Overall height: 118 mm
• Weight (approx.): 0.72 kg
• Load capacity at 3 km/h (dynamic): 120 kg
• Static load capacity: 240 kg
• Temperature range: -10 °C to 40 °C
• Fitting type: Bolt hole
• Bolt hole diameter: 13 mm
• Housing colour: Grey white (RAL9002)
• Fork shape: Twin wheel housing
• Offset: 32 mm
• Swivel radius: 108 mm
• Electrical conductivity: Yes
