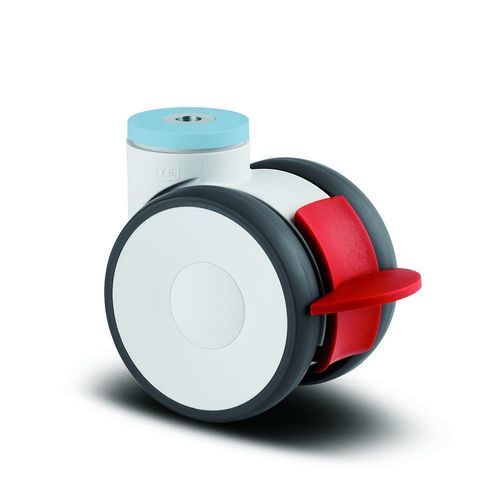

Medical trolley wheel Linea

polyamidepolyurethanestainless steel

Product description
The Linea swivel castor with total lock is designed for secure mounting with a bolt hole fitting. The polyamide housing incorporates a precision stainless ball bearing swivel for smooth rotation and reliable lock engagement. The 100 mm wheel features a polyamide core with an injected polyurethane tread (92 Shore A) for floor protection and low noise. Suitable for medium-duty industrial and commercial equipment where mobility and secure positioning are required.

Product advantages

• Non-hazardous materials
• Tested quality and consistent performance
• Colour matching options for visual integration

Features

• Wheel diameter: 100 mm
• Overall height: 118 mm
• Dynamic load capacity (3 km/h): 120 kg
• Static load capacity: 240 kg
• Housing material: Polyamide
• Tread: Injected polyurethane, 92 Shore A
• Bearing: Precision stainless ball bearing (swivel and wheel)
• Fitting type: Bolt hole, 11 mm diameter
• Total lock: simultaneous lock of wheel and swivel housing
• Threadguard included for unobstructed operation and low maintenance

Technical data (summary)

• Type: Swivel castor with total lock
• Overall width: 82 mm
• Overall height: 118 mm
• Wheel diameter: 100 mm
• Tread width: 20 mm
• Tread hardness: 92 Shore A
• Body material: Polyamide
• Tread material: Polyurethane, injected
• Bearing: Precision ball bearing, stainless
• Dynamic load (3 km/h): 120 kg
• Static load: 240 kg
• Weight (single castor): 0.74 kg
• Temperature range: -10 °C to 40 °C
• Standard: EN12530
• Fitting: Bolt hole, Ø 11 mm
• Colour (housing): Grey white (RAL9002)
• Fork shape: Twin wheel housing
• Dome diameter: 52 mm
• Swivel interference: 216 mm
• Offset: 32 mm
• Swivel radius: 108 mm

Product specifications

• Product name: Linea
• Article number: 5947UAC100P30-11 RAL9002
• EAN: 4031582352511
• Electric conductive: no
• Stainless components: yes (bearings)
• Threadguards: With threadguard
• Applications: industrial equipment, medical and service trolleys, furniture, cleaning equipment, catering carts
