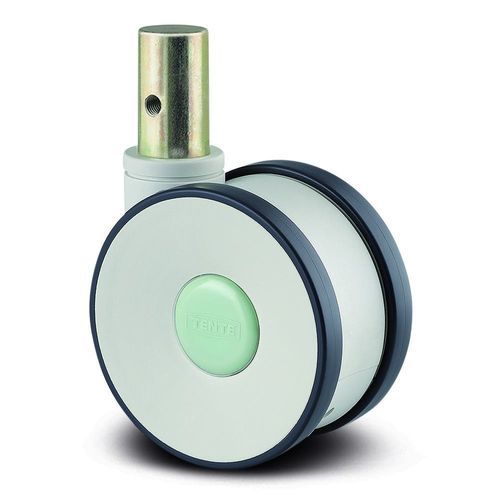

Medical trolley wheel Linea

for hospital bedfor examination chairspolyamide

Overview
The Linea swivel castor is designed for medical and professional equipment. It features a solid round stem fitting, a polyamide housing and a polyamide wheel body with injected polyurethane tread. Both wheel and swivel use precision ball bearings for smooth rolling and reliable directional changes. Wheel diameter 150 mm; overall height 155 mm. Dynamic load capacity 150 kg (at 3 km/h and 4 km/h); static load capacity 450 kg. Housing colour Grey white (RAL9002). Threadguard included.

Key features

• Wheel: 150 mm diameter; tread width 15 mm
• Overall height: 155 mm
• Load capacity: 150 kg dynamic (3 km/h & 4 km/h); 450 kg static
• Body material: polyamide; tread: injected polyurethane (92 Shore A / 42 Shore D)
• Bearings: precision ball bearings (wheel and swivel)
• Fitting: solid stem, round Ø32 mm; bolt length 45 mm; thread position 7 mm; 2 bolt mounting holes
• Colour: Grey white (RAL9002)
• Threadguard: with threadguard

Applications

• Medical equipment: anaesthesia carts, C‑arms, CT, MRI, X‑ray
• Care equipment: dialysis carts, medication trolleys, patient lifters, ventilators, treatment chairs
• Hospital furniture and mobile clinical devices
• Other professional uses: catering trolleys, computers on wheels, cleaning trolleys, office furniture

Special features

• Materials compliant with RoHS and REACH; free from PAHs and chromium (VI)
• Tested in company laboratory to meet European standards
• Colour matching and painted finish options (gold, chrome, glossy colours)
• Low‑maintenance design with thread guards; non‑marking tread
• Chemical‑resistant components; optimised roll resistance for easier manoeuvring
• Integrated cable pusher to protect floor‑laid cables
• Custom branding options: engraved, cast or printed

Technical specifications

• Product name: Linea
• Article number: 5940UAP150R05-32 9002
• Order / S4 material number: 990034522
• EAN / GTIN-13: 4031582338898
• Type: Swivel castor (twin‑wheel housing)
• Wheel diameter: 150 mm
• Tread width: 15 mm
• Overall width (fork): 71 mm
• Overall height: 155 mm
• Dome diameter: 45.5 mm
• Offset: 47.5 mm
• Swivel radius: 127 mm
• Swivel interference (turning circle): 254 mm
• Load capacity (3 km/h): 150 kg
• Load capacity (4 km/h): 150 kg
• Static load capacity: 450 kg
• Overall weight: 1.09 kg
• Tread hardness: 92 Shore A (42 Shore D)
• Body material: Polyamide
• Tread material: Injected polyurethane
• Wheel bearing: Precision ball bearing
• Swivel bearing: Precision ball bearing
• Fitting type: Solid stem, round; bolt diameter: 32 mm; bolt length: 45 mm; bolt thread position: 7 mm; bolt mounting holes: 2
• Temperature range: -10 °C to 40 °C
• Standard: EN12531 — Hospital bed castors
• Electrical conductivity: not conductive
• Stainless: not applicable
