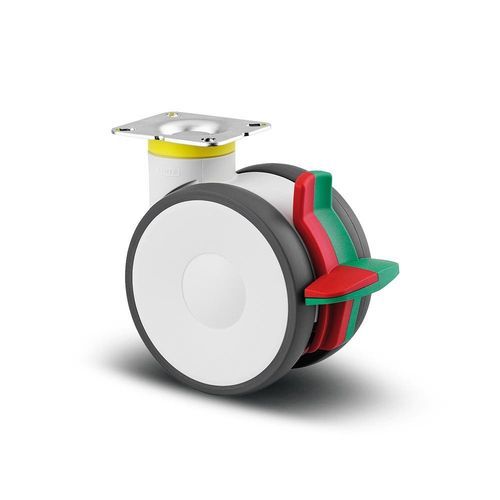

Hospital bed wheel Linea

anti-staticwith brakepolyamide

Short description
The Linea swivel castor with combined lock is a medical-grade twin-wheel castor designed for safe manoeuvrability and reliable locking on hospital and imaging equipment. It features a rectangular plate fitting, polyamide twin-wheel housing, precision ball bearings in swivel and wheel, an electrically conductive polyamide wheel body and injected conductive polyurethane tread, wheel diameter 125 mm, overall height 148 mm. Dynamic load capacity 130 kg (3 km/h), static 260 kg.

Key data

• Series: Linea
• Type: Swivel castor with combined lock (twin-wheel)
• Article number: 594CXSP125P51 RAL9002
• Wheel diameter: 125 mm
• Overall height: 148 mm
• Dynamic load capacity (3 km/h): 130 kg
• Static load capacity: 260 kg
• Fitting: Rectangular plate (95 x 70 mm)

Features

• Electrically conductive wheel body and tread available for ESD protection
• Precision ball bearings in swivel and wheel for smooth rolling
• Injected polyurethane tread, hardness 92 Shore A, non-marking
• Integrated threadguard and cable pusher for uninterrupted operation
• Low-maintenance, smooth surfaces for easy cleaning in clinical environments
• Colour matching options for housings (example: Grey white RAL9002)
• Ergonomic combined lock with directional (green) and total (red) kick pedals

Special features for medical use

• Tested and monitored by TÜV Süd for performance standards applicable to hospital castors
• Antimagnetic construction compatible with security scanners and MRI environments
• Extremely low build height to reduce trip and entrapment risk under hospital beds
• Certified conductive option to protect users and sensitive devices from electrostatic discharge
• Chemical-resistant materials compatible with common hospital cleaning agents
• Options for branded marking or surface finishes on demand

Performance (summary)

• Roll performance: 5/5
• Movement noise: 3/5
• Wear resistance: 4/5
• Corrosion resistance: 4/5

Technical specifications

• Product name: Linea
• Article number: 594CXSP125P51 RAL9002
• EAN: 4031582378511
• Type: Swivel castor with combined lock
• Fitting: Rectangular plate (95 mm x 70 mm)
• Plate hole diameter: 11 mm
• Plate hole length (max): 75 mm
• Plate hole width (max): 50 mm
• Overall width: 82 mm
• Overall height: 148 mm
• Wheel diameter: 125 mm
• Tread width: 20 mm
• Tread hardness: 92 Shore A
• Wheel body material: Conductive polyamide
• Fork material: Polyamide (twin-wheel fork)
• Swivel bearing: Precision ball bearing
• Wheel bearing: Precision ball bearing
• Dome diameter: 52 mm
• Swivel interference: 258 mm
• Offset: 40 mm
• Swivel radius: 129 mm
• Load capacity (dynamic, 3 km/h): 130 kg
• Load capacity (static): 260 kg
• Standard: EN12530
• Temperature range: -20 °C to 60 °C
• Weight (approx.): 1.15 kg
• Conductive version: Yes (wheel body and tread)
• Stainless: Not applicable
• Certification: Tested and monitored by TÜV Süd
