Medical trolley wheel Linea

for hospital bedpolyamidepolyurethane

Description

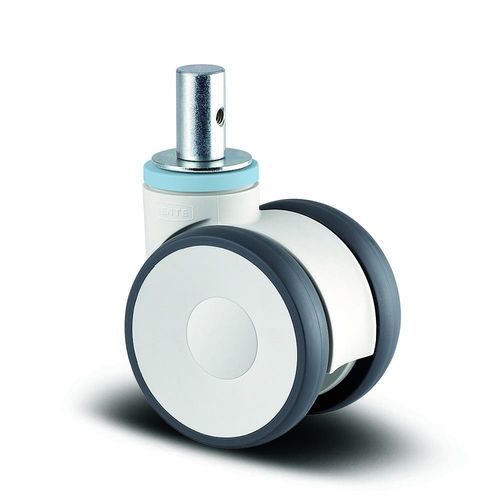

The Linea swivel castor with solid stem (round fitting) is designed for medical and professional equipment requiring smooth, quiet movement and reliable load capacity. The twin-wheel polyamide housing incorporates a precision stainless-steel ball-bearing swivel mechanism. The wheel has a polyamide body with an injected polyurethane tread (92 Shore A) and integrated threadguard for reduced maintenance. Wheel diameter: 100 mm; overall height: 120 mm.

Advantages

• Non-hazardous materials compliant with RoHS and REACH
• Low-noise, floor‑protective polyurethane tread
• Precision stainless bearings for corrosion resistance

Special features

• Solid stem, round fitting (bolt Ø22 mm, length 40 mm)
• Polyamide housing and wheel body with injected polyurethane tread
• Precision stainless-steel ball bearings (wheel and swivel)
• Threadguard for unobstructed operation and reduced cleaning
• Colour matching (RAL9002) and painted finish options
• Low-maintenance, non-marking and chemically tolerant components
• Integrated cable pusher and individual branding options

Applications

• Medical devices: anaesthesia trolleys, imaging equipment (C-arm, CT, MRI), patient beds and nursing carts
• Dialysis, medication and nursing carts
• Catering and professional cleaning trolleys
• Office furniture and mobile IT workstations

Technical specifications

• Product name: Linea
• Article number: 5940UAC100R05-22 RAL9002
• EAN: 4031582352672
• Type: Swivel castor, twin wheel
• Wheel diameter: 100 mm
• Overall height: 120 mm
• Overall width: 82 mm
• Tread width: 20 mm
• Tread hardness: 92 Shore A
• Wheel body material: Polyamide
• Tread material: Injected polyurethane
• Wheel bearing: Precision ball bearing, stainless
• Swivel bearing: Precision ball bearing
• Dynamic load (3 km/h): 120 kg
• Static load: 240 kg
• Speed rating: up to 3 km/h
• Weight: 0.82 kg
• Bolt (stem) diameter: 22 mm
• Bolt length: 40 mm
• Housing colour: RAL9002 (grey white)
• Standard: EN12530
• Operating temperature: -10 °C to 40 °C
