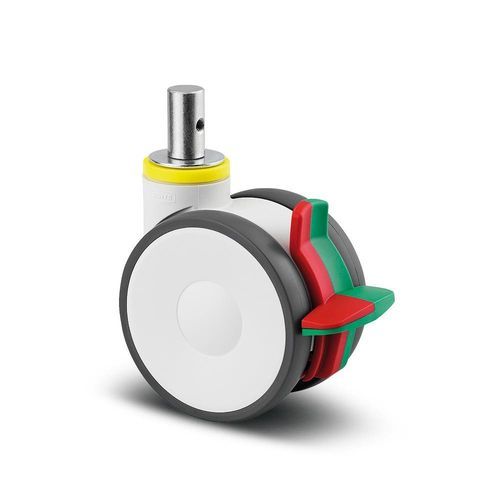

Medical trolley wheel Linea

for hospital bedfor operating tableanti-static

Product overview
The Linea swivel castor with combined lock is designed for medical and healthcare equipment where ESD protection, low installation height and reliable braking are required. The polyamide housing incorporates a precision ball bearing swivel. The wheel has a conductive polyamide body with an injected, electrically conductive polyurethane tread and a precision ball bearing.

Main applications

• Hospital beds and care beds
• Medical trolleys, anesthesia and medication carts
• Imaging equipment trolleys (C-arm, CT, X-ray) and MRI-compatible rolling equipment
• Operating room and intensive care equipment
• Computers on Wheels (COWs) and point-of-care systems

Key features

• Wheel body: Polyamide, electrically conductive
• Tread: Injected polyurethane, electrically conductive, 92 Shore A
• Wheel bearing: Precision ball bearing
• Swivel bearing: Precision ball bearing
• Fitting: Solid round stem, bolt Ø 22 mm, bolt length 40 mm
• Wheel diameter: 125 mm — Overall height: 145 mm — Overall width: 82 mm
• Threadguard: With threadguard to protect tread
• Temperature range: -20 °C to 60 °C

Benefits & safety

• Conductive tread reduces risk of electrostatic discharge, protecting sensitive medical electronics
• Low installation height for use under beds and to minimise trip hazards
• Combined lock secures swivel and wheel for safe stationary positioning
• TÜV Süd tested and monitored for performance and safety
• Threadguard reduces cable entanglement in hospital and clinical environments

Technical summary (key data)
Series: Linea
Article number: 594CXSP125R05-22 RAL9002
EAN: 4031582378559
Wheel diameter: 125 mm
Overall height: 145 mm
Overall width: 82 mm
Load capacity (3 km/h): 130 kg
Static load capacity: 260 kg
Overall weight: 1.2 kg
Fitting type: Solid stem, round (Ø 22 mm, length 40 mm)
Housing material: Polyamide (grey white RAL9002)
Wheel body: Polyamide, electrically conductive
Tread: Polyurethane injected, electrically conductive, 20 mm width, 92 Shore A
Swivel bearing: Precision ball bearing (dome Ø 52 mm)
Swivel interference: 258 mm — Offset: 40 mm — Swivel radius: 129 mm
Standard: EN12530 — TÜV Süd tested
