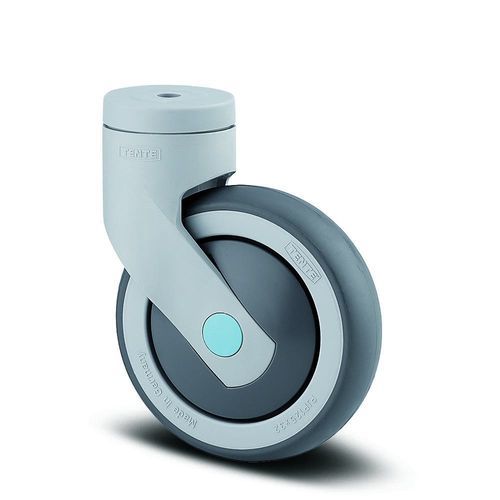

Medical trolley wheel Levina

polyamiderubberstainless steel

Product overview
The Levina stainless swivel castor is designed for medical and professional equipment with a bolt-hole fitting (11 mm). The polyamide fork incorporates two ball races (reinforced or stainless swivel bearing) and a polypropylene wheel body with a thermoplastic rubber tread. The wheel uses a precision stainless ball bearing. Wheel diameter: 100 mm; overall height: 137 mm. Dynamic load capacity is 100 kg at speeds up to 3 km/h and static capacity 200 kg, making it suitable for imaging and hospital applications.

Key features

• Bolt-hole fitting (11 mm)
• Polyamide housing with two ball races (reinforced or stainless swivel bearing)
• Wheel: polypropylene body with thermoplastic rubber tread
• Precision stainless ball bearing (wheel)
• Wheel diameter: 100 mm; Overall height: 137 mm
• Dynamic load capacity: 100 kg (up to 3 km/h); Static load capacity: 200 kg
• Non-hazardous materials (RoHS and REACH compliant)
• Threadguard for low maintenance and unobstructed operation
• Low residual magnetism for consideration in security scanners and MRI environments
• Colour matching available (Silver grey RAL7001)

Applications / Suitable for

• Anaesthesia carts, C-arms, CT scanners, MRI, X-ray equipment
• Catering carts and meal delivery systems
• Computers on wheels (COW), dialysis and medication carts
• Hospitals, nursing homes and professional care trolleys
• Ultrasound equipment, ventilators and professional cleaning carts

Technical specifications

• Product name: Levina stainless
• Article number / Product number: 5380PJC100P30-11 7001
• Order number / S4 Material Number: 990036561
• EAN: 4031582348941
• Type: Swivel castor
• Wheel diameter: 100 mm
• Overall height: 137 mm
• Overall width: 59 mm
• Dome diameter: 59 mm
• Swivel interference: 172 mm
• Offset: 36 mm
• Swivel radius: 86 mm
• Dynamic load (3 km/h): 100 kg
• Static load capacity: 200 kg
• Overall weight: 0.43 kg
• Temperature range: -10 °C to 40 °C
• Standard: EN12530 - Devices Castors
• Electrical conductive: No
• Stainless: Yes (where applicable)
• Fitting type: Bolt hole (11 mm)
• Housing colour: Silver grey (RAL7001)
• Fork material: Polyamide
• Fork shape: Slim
• Swivel bearing: Two ball races (reinforced or stainless)
• Tread hardness: 87 Shore A
• Wheel body material: Polypropylene
• Tread material: Thermoplastic rubber
• Tread width: 32 mm
• Threadguards: With threadguard
• Wheel bearing: Precision stainless ball bearing
