Hospital bed wheel Linea

anti-staticpolyamidepolyurethane

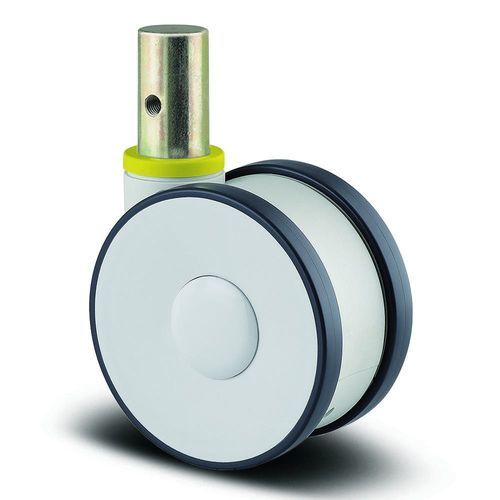

Product overview The Linea swivel castor is supplied with a solid round stem for secure mounting. The housing and fork are made of polyamide and the swivel and wheel run on precision ball bearings; the wheel bearings feature stainless components. The wheel body is polyamide with an injected conductive polyurethane tread suitable for electrostatic-sensitive environments. Wheel diameter is 150 mm and overall height is 155 mm. Rated dynamic load is 150 kg (at 3–4 km/h) and static load rating is 300 kg, making the castor suitable for medium-duty medical and equipment applications requiring electrical conductivity.

Advantages

• Non-hazardous materials compliant with RoHS and REACH
• Tested quality in dedicated laboratory facilities
• Colour matching available to integrate with equipment design

Special features

• RoHS and REACH compliant materials; free from PAHs and chromium (VI)
• Lab-tested for compliance with relevant European standards
• Adaptable colours and painted finishes (gold, chrome, gloss)
• Award-winning industrial design options
• Low-maintenance wheel design with thread guards
• Non-marking tread for reduced abrasion and cleaning needs
• Optimised rolling resistance for ergonomic handling
• Certified conductive tread to prevent electrostatic discharge
• Chemical-resistant components for compatibility with common cleaning agents
• High manoeuvrability with twin-wheel housing and differential effect
• Smooth surfaces for simplified cleaning and maintenance
• Integrated cable protection (cable pusher) for floor-laid cables
• Custom branding options: engraved, cast or printed

Technical specifications

• Product name: Linea
• Product number / Article Number: 5940USC150R05-32
• EAN / GTIN13: 4031582360042
• Overall weight: 1.12 kg (meta: 1.118 kg)
• Type: Swivel castor
• Overall width: 71 mm
• Wheel diameter: 150 mm
• Tread width: 15 mm
• Wheel body material: Polyamide
• Tread material: Polyurethane, injected, electric-conductive
• Wheel bearing: Precision ball bearing, stainless components
• Swivel bearing: Precision ball bearing
• Offset: 47.5 mm
• Swivel radius: 122.5 mm
• Swivel interference / turning circle: 254 mm
• Fork shape / Housing: Twin wheel housing
• Fork material: Polyamide
• Threadguards: With threadguard
• Fitting type: Solid stem, round
• Bolt diameter: 32 mm
• Bolt length: 45 mm
• Load capacity at 3 km/h: 150 kg
• Load capacity at 4 km/h: 150 kg
• Static load capacity: 300 kg
• Overall height: 155 mm
• Temperature range (Minimum): -10 °C
• Temperature range (Maximum): 40 °C
• Standard: similar to EN12531 (hospital bed castors)
• Electric conductive: yes (conductive tread, certified conductivity)
• Stainless: wheel bearings include stainless components; housing and fork are polyamide
