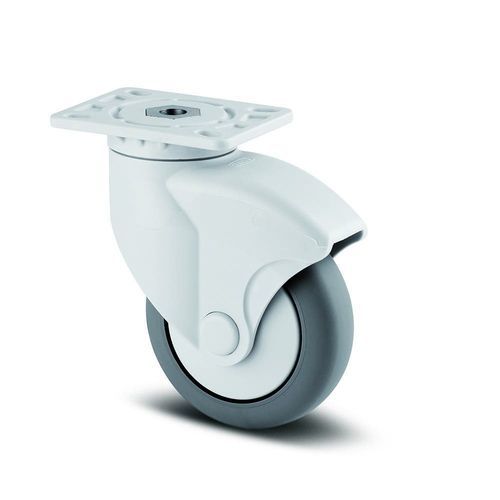

Medical trolley wheel Galea

for hospital bedfor examination chairspolyamide

Short description
The Galea swivel castor with rectangular plate fitting is designed for medical and care applications requiring reliable mobility and controlled load-bearing. It features a polyamide housing, a two ball races swivel bearing for smooth steering and a polypropylene wheel with thermoplastic rubber tread mounted on a precision ball bearing. Diameter: 125 mm. Overall height: 163 mm. Dynamic load capacity: 100 kg (at up to 3 km/h). Static load capacity: 200 kg.

Features

• Diameter: 125 mm
• Overall height: 163 mm
• Load capacity (dynamic at 3 km/h): 100 kg
• Load capacity (static): 200 kg
• Wheel body material: polypropylene
• Tread material: thermoplastic rubber
• Tread width: 30 mm
• Tread hardness: 87 Shore A
• Wheel bearing: precision ball bearing
• Swivel bearing: two ball races
• Fitting type: rectangular plate (90 x 70 mm)
• Plate hole diameter: 8 mm
• Threadguards: with threadguard

Product advantages

• Non-hazardous materials (RoHS and REACH compliant; free of PAHs and chromium VI)
• Tested quality according to relevant European standards
• Colour matching options to integrate with product design
• Painted surface options (gold, chrome, glossy colours)
• Low-maintenance operation (threadguards reduce cleaning effort)
• Non-marking tread for reduced abrasion and easier cleaning
• Easy steering thanks to double ball race swivel head
• Chemical-resistant components compatible with common cleaning agents
• Food-industry applicability (Lerpac approval where required)

Applications

• Care beds and hospital beds
• Medical and catering trolleys, meal delivery systems
• Shower chairs and other medical seating requiring mobility

Technical specifications

• Article number: 5070PJP125P60-90x70
• EAN: 4031582308846
• Product name / model: Galea
• Type: Swivel castor
• Diameter (wheel): 125 mm
• Tread width: 30 mm
• Hardness of tread: 87 Shore A
• Wheel body material: Polypropylene
• Tread material: Thermoplastic rubber
• Bearing (wheel): Precision ball bearing
• Swivel bearing: Two ball races
• Threadguards: With threadguard
• Overall height: 163 mm
• Overall weight: 0.42 kg
• Load capacity (dynamic at 3 km/h): 100 kg
• Load capacity (static): 200 kg
• Temperature range: -20 °C to 60 °C
• Fitting type: Rectangular plate (90 x 70 mm)
• Plate hole diameter: 8 mm
• Plate hole length (max / min): 70 mm / 60 mm
• Plate hole width (max / min): 55 mm / 50 mm
• Plate length: 90 mm
• Plate width: 70 mm
• Fork shape: Closed
• Fork material: Polyamide
• Swivel interference: 205 mm
• Offset: 40 mm
• Swivel radius: 102.5 mm
• Applicable standard: EN12530 - Devices Castors
• Electric conductive: No
• Stainless: No
