Wrist orthosis AM-OSN-U-01

wrist splintmedian nerve anti-compressionXS

Description

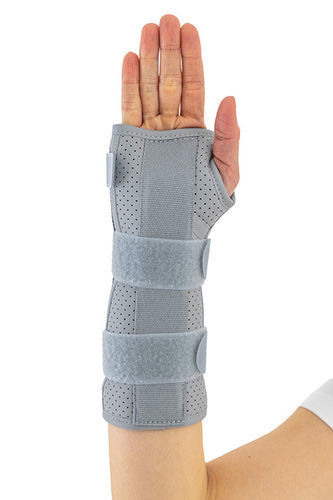

Wrap-around wrist support designed to follow anatomical contours and stabilize the wrist and radiocarpal joint. Made from AirSanmed II™, the orthosis provides adjustable stabilization for various wrist anatomies. A Soft Elastic Pad in the distal palmar area enhances comfort. Three Velcro straps with plastic end covers secure the fit and aid users with limited dexterity. The product includes an anatomically shaped, malleable and removable metal palm strip with a sweat-resistant coating.

Purpose of use

• after wrist injuries
• bursitis
• joint degeneration or inflammation

Sizes
Size | Wrist circumference | How to measure
XS | 11-13 cm (4.3-5.1 in) | Wrist circumference
S | 13-15 cm (5.1-5.9 in) | Wrist circumference
M | 15-17 cm (6.1-6.7 in) | Wrist circumference
L | 17-19 cm (6.9-7.5 in) | Wrist circumference
XL | 19-21 cm (7.7-8.3 in) | Wrist circumference

Total length of the product
XS — 23 cm (9.05 in)
S — 23 cm (9.05 in)
M — 24 cm (9.4 in)
L — 24 cm (9.4 in)
XL — 24 cm (9.4 in)

Sides
Left and right available.

Colors
GREY (shown), BLACK available.

Materials
AirSanmed II™ is a multi-layer intelligent orthopedic textile developed for brace production. The external vapor barrier is washable and can be chemically or vapor disinfected. The fabric is perforated and laminated with off-loading foam to reduce pressure from metal stays and splints; this foam is bonded to soft comfort foam and laminated with breathable cotton (pH neutral, Oeko-Tex Standard 100 certified).

Allowable disinfectants (surface-active agents and maximum content)

• 2-propane — 35%
• 1-propane — 25%
• Ethanol — 10%
• Alkyl Dimethyl Benzyl Ammonium Chloride — 0.2%
• Glucoprotamine — 25%

Spray the device surface with disinfectant, allow activation time, then wash and dry.

Technology / Systems
The CTSyndrome system: a dedicated pad on the wrist splint that protects the carpal canal from excessive compression, reducing carpal canal pressure and supporting free transmission of impulses in the median nerve to lower the risk of aggravating entrapment neuropathy.

Stiffenings

• Palm strip — anatomically shaped, malleable metal strip (removable, sweat-resistant coating)
• Plastic stays — various widths and thicknesses; water-, moisture- and sweat-resistant; directional support with memory function

Accessories / Products to be used with

• Upper limb support OKG-03 GREY
• Upper limb support OKG-07 GREY
• Protective sleeve for the brace AM-RB

Characteristics / technical specifications

• Brand: 4medic
• Trade name: WRIST ORTHOSIS
• Model: AM-OSN-U-01
• Medical device class: Class I medical device
• Main material: AirSanmed II™ (multi-layer, breathable, laminated with off-loading and comfort foams; Oeko-Tex Standard 100 certified cotton lining)
• Design: Wrap-around, anatomic shape
• Closure: Three Velcro straps with plastic covers for easier handling
• Additional comfort: Soft Elastic Pad in distal palmar area
• Stiffening options: Removable malleable metal palm strip; plastic stays
• Technological feature: CTSyndrome pad to reduce carpal canal pressure
• Water resistance: Compatible with water-resistant materials
• Sizes (wrist circumference): XS 11-13 cm; S 13-15 cm; M 15-17 cm; L 17-19 cm; XL 19-21 cm
• Total product length: XS/S ≈ 23 cm; M/L/XL ≈ 24 cm
• Sides: Left and right available
