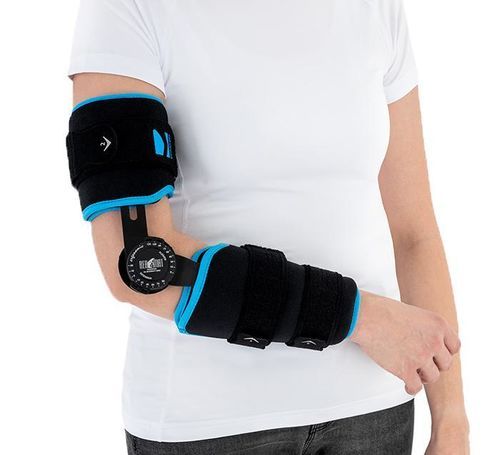

Universal elbow support AM-SL-04

arm surgeryorthopedicadult

Product description
The AM-SL-04 elbow orthosis stabilizes the elbow joint while permitting controlled, progressive mobilization during rehabilitation. It ensures guided flexion/extension control, protects injured tissues and limits undesired ranges of motion. The anatomical shape and breathable, skin-friendly materials provide alignment and wearing comfort for extended use.

Materials and components

• ActiveDistance II™: three-layer active fabric (non-elastic polyamide self-gripping layer, comfort foam, cotton terry) — skin-friendly, Oeko-Tex Standard 100 certified, moisture-managing, self-gripping for precise fit.
• UniPren™: universal three-layer material (external elastic polyamide with self-adhesive function, internal neoprene foam core, elastic jersey cover) — soft, highly flexible, minimizes skin marking and abrasion, self-adhesive for easy application.
• Splint 1RE: single-axis orthopedic splint with ROM adjustment in 15° increments and hyperextension settings (-15° and -30°); aluminium alloy, plastic and carbon fibre construction; patented angle adjustment dial with safety lock; lightweight and corrosion-resistant.

Indications / Purpose of use

• Post-operative rehabilitation after elbow surgery
• Elbow dislocations
• Collateral ligament injuries (MCL, LCL)
• Periarticular fractures following stabilization
• Post-traumatic conditions requiring gradual joint mobilization
• Controlled range-of-motion during physiotherapy

Sizes (measurement table)
Size | Arm circumference (A) | Forearm circumference (B) | Distance from elbow to armpit (C) | Distance from elbow to wrist joint (D) | How to measure
Universal | 22 – 44 cm | 22 – 36 cm | 16.5 – 20 cm | 22.5 – 28 cm | (illustration provided on product page)

Additional information
Fits left and right arm. Total length of the brace: min 39 cm – max 48 cm.

Caractéristiques / spécifications techniques

• Model: AM-SL-04
• Trade name: Elbow orthosis
• Universal size (arm circumference A: 22–44 cm; forearm B: 22–36 cm)
• Total length: 39–48 cm
• Hinge: lateral Splint 1RE with ROM adjustment in 15° increments and full ROM lock
• Hyperextension adjustment: secured ranges -15° and -30°
• Adjustable circumferential strap system with strong hook-and-loop fasteners
• Main materials: ActiveDistance II™ and UniPren™ (skin-friendly, breathable, self-gripping / self-adhesive layers)
• Intended uses: post-op rehabilitation, dislocations, ligament injuries, periarticular fractures, controlled mobilization
• Fits left and right arm
• Class: Class I medical device
