Universal elbow support AM-SL-03

orthopedicadultanatomical

Product description

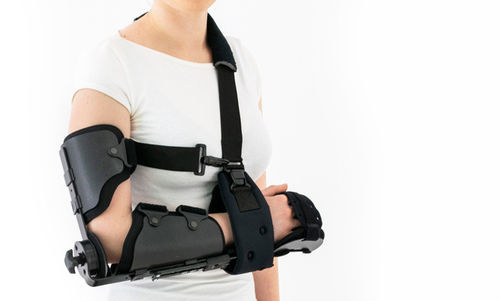

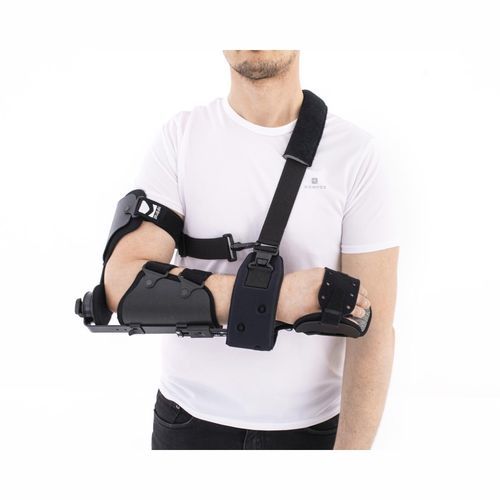

Upper limb brace AM-SL-03 is a professional orthosis designed for stabilization and immobilization of the elbow, wrist and forearm. It provides adjustable joint angle positioning, reduces forearm rotation (pronation/supination) and permits adjustment of ulnar and radial deviation. The orthosis is intended as a safer and more controllable alternative to traditional cast immobilization, enabling skin monitoring and reducing risk of complications such as necrosis. The brace is equipped with two anatomic-shaped arm and forearm plastic elements, a single aluminum splint with length adjustment via Press-Slide System, and an elbow adjuster located above the olecranon with a comfort thermoformed pad.

Key features

• Anatomic shaped arm and forearm plastic elements (lightweight, contoured fit)
• Aluminum splint with Press-Slide System for tool-free length adjustment (universal size)
• Elbow adjuster for forearm rotation (pronation, supination, neutral) with easy dial access and comfort pad
• Palmar adjuster allowing ulnar or radial deviation immobilization via screws
• Special hinge adjustable with included Allen key to set wrist palmar/dorsal flexion or neutral
• Removable fingers separator and dorsal hand strap for positioning
• Wrap-around straps for circumferential fitting and compression adjustment
• Soft waterproof UniPren lining (3-layer material with self-adhesive function) — washable and reattachable; enables showering without removing the brace
• Intended for full day and night stabilization

Purpose of use

• Epicondyle fracture of the humerus
• Elbow dislocation
• Distal Radial Ulnar Joint (DRUJ) injury
• Forearm injury
• Olecranon fracture
• Monteggia fracture
• Galeazzi fracture
• Essex-Lopresti fracture
• Tendons and ligaments injuries
• Wrist injuries
• Chronic elbow injuries
• Elbow hyperextension

Sizes
Size: Universal
(A) Arm circumference: min 28 – max 35 cm (min 11" – max 13.8")
(B) Length from lateral epicondyle of the humerus to the wrist: min 22 – max 31 cm (min 8.7" – max 12.2")
How to measure: see product reference image

Total height of the product: min 25 cm – max 28 cm (min 9.8" – max 11")
Total length of product: min 43 cm – max 52 cm (min 16.9" – max 20.5")
Available for right and left side.

Materials & Technology

• UniPren™: a 3-layer material — external elastic polyamide cover knit with self-adhesive function, neoprene foam core, elastic jersey inner cover; soft, flexible, skin-friendly, waterproof
• Press-slide System: length adjustment mechanism allowing easy, tool-free splint extension/shortening; scale for repeatable adjustment
• 3D relief pads (supporting foams/EVA) for padding and pressure relief
• Upper limb stabilization system: orthopedic splints with drop lock, adjustable hand grip and length-regulating splint

Technical specifications

• Brand: 4medic
• Code: AM-SL-03
• Trade name: ELBOW ORTHOSIS
• Model: AM-SL-03
• Medical device classification: Class I medical device
• Size: Universal (adjustable arm/forearm length)
• Primary materials: UniPren™ (waterproof three-layer material), anatomic plastic shells, aluminum splint
• Adjustment systems: Press-Slide System (splint length), elbow rotation dial, palmar ulnar/radial deviation adjuster, adjustable hinge for wrist flexion/extension (Allen key)
• Accessories / removable components: fingers separator (removable), dorsal hand strap
• Intended use: immobilization and stabilization of elbow, wrist and forearm for fractures, dislocations and soft tissue injuries
